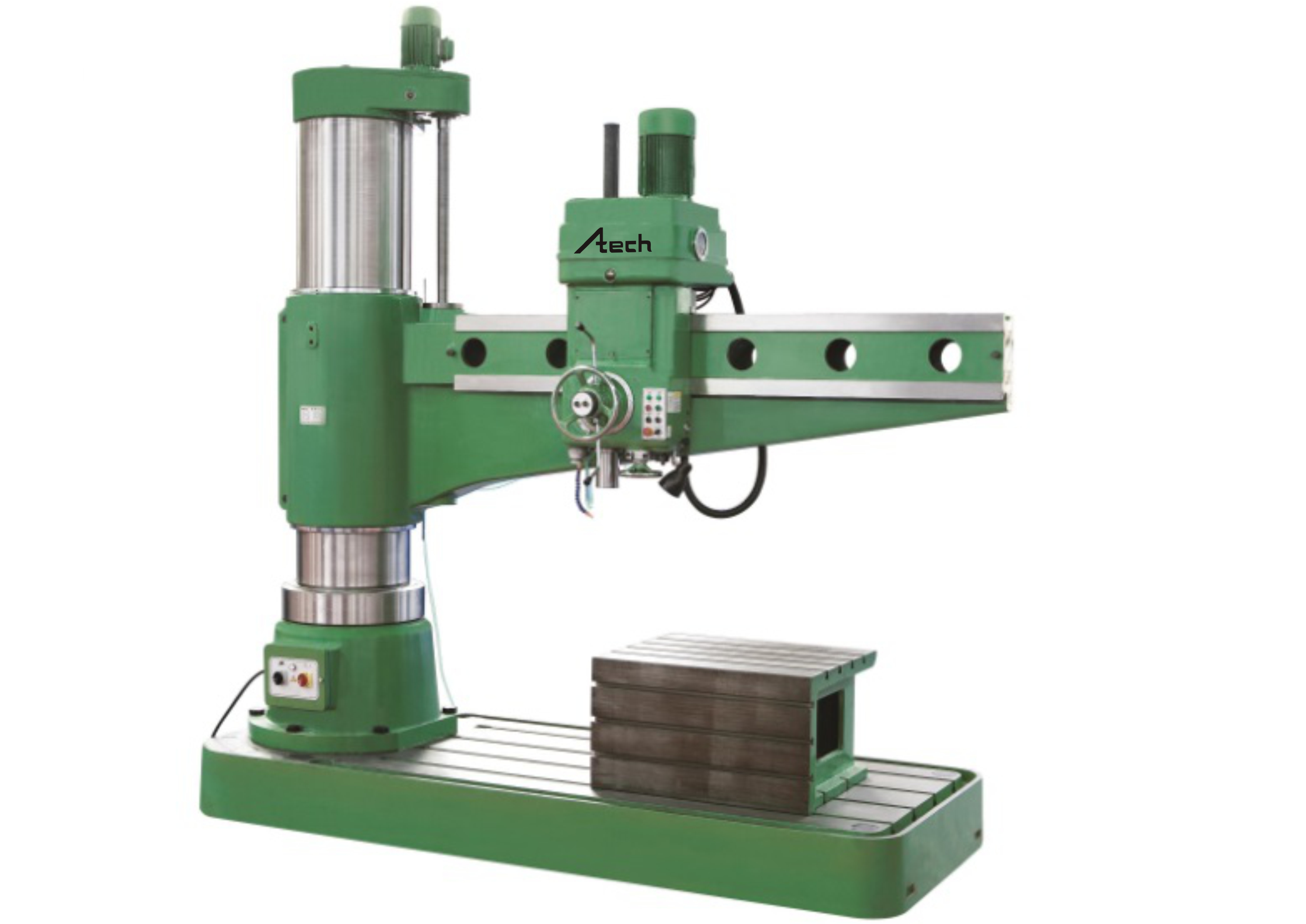

Radial Drilling Machine ZQ3050×16

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: ,

Description

Features

  • Radial drilling machine
  • Transmission:Mechanical transmission
  • Max. drilling diameter:50mm
  • Spindle taper:Morse 4
  • Spindle travel:200mm



Specification

Technical parameters ZQ3050×16
Max Drilling Diameter(mm) 50
Spindle center to column (mm) 360-1600
Spindle nose to table (mm) 260–1150
Spindle travel (mm) 220
Spindle taper(Morse) 5
Spindle speed range (r/min) 78–1100
Spindle speeds series(mm/r) 0.10–0.56
Radial rotation Angle 360°
Main motor power( kw) 4
Machine weight (kgs) 3000
Machine overall size (L*W*H mm) 2170×950×2450





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 3000 kg
