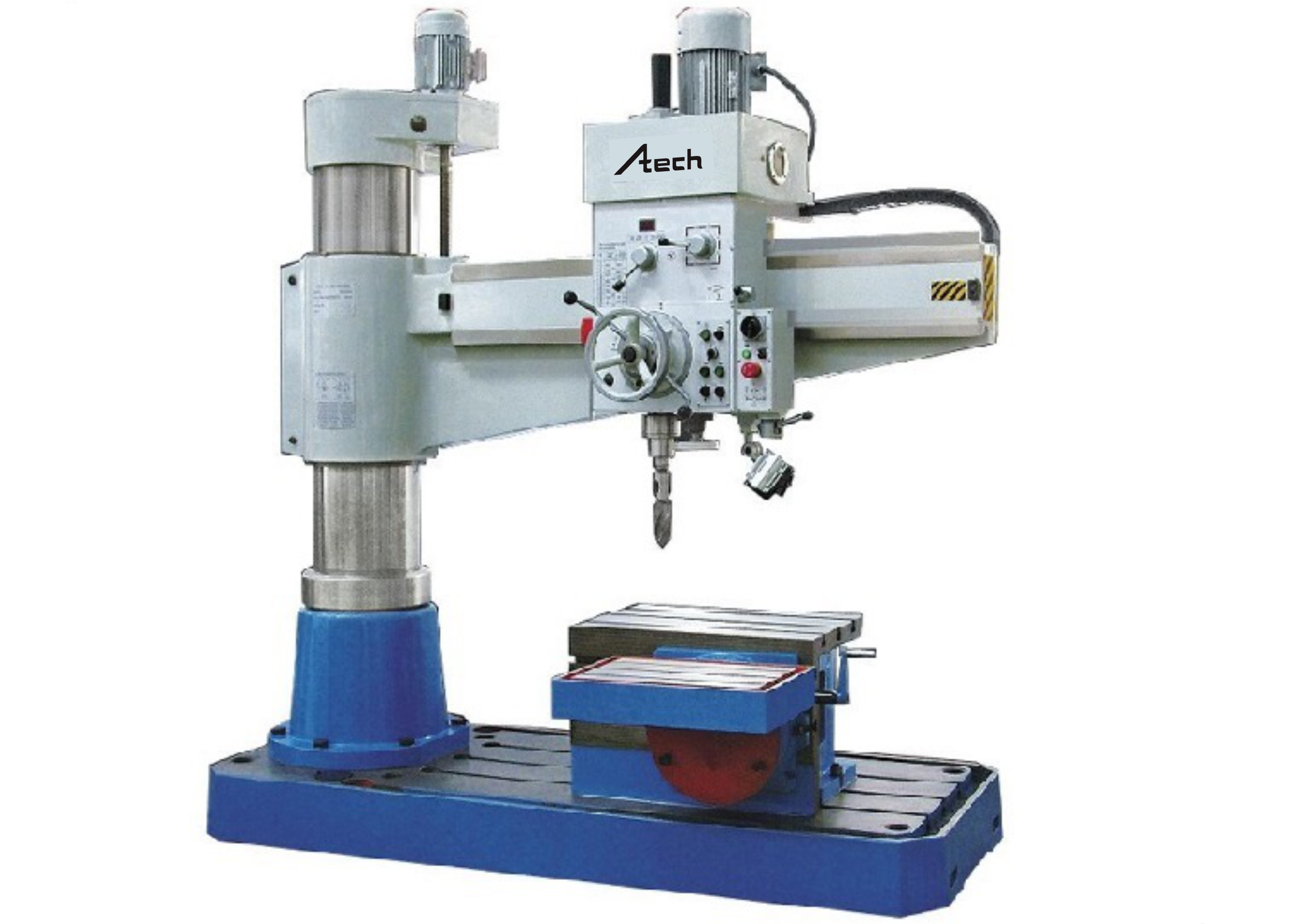

Radial Drilling Machine ZB3060×16

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: ,

Description

Features:

  • Radial drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time.
  • It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
  • Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism.
  • Perfect safety protector and outer post protection are available.
  • In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
  • Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.





Specification

Model ZB3060×16
Max. drilling diameter (on Medium-carbon steel) φ62
Max. drilling diameter( on cast iron) φ72
Max. tapping diameter (on Medium-carbon steel) M46
Max. tapping diameter (on cast iron) M52
Max.Distance from spindle to generating line of column 350-1600
Distance of horizontal movement for spindle box(manual) 1250
Max. distance between spindle end to the worktable surface of the base 350-1250
Max. travel of the spindle 315
Spindle taper bore MT.5
Spindle speed steps Stepless
Spindle speed range 38-275; 275-2000
Spindle feed steps 8
Spindle feed range 0.06-1.00
Speed of rocker arm up and down movement 1.2
Rotation angle of rocker arm. ±180
Distance of spindle movement for calibrated dial each revolution 122
Power of main motor(tranducer motor) 4
Power of motor for rocker arm up and down movement 1.5
Power of oil pump motor for spindle box, column and rocker arm clamping 0.75
Weight of machine(without worktable) 3800
Machine dimension (L x W x H) 2490×1000×2598





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 3800 kg
