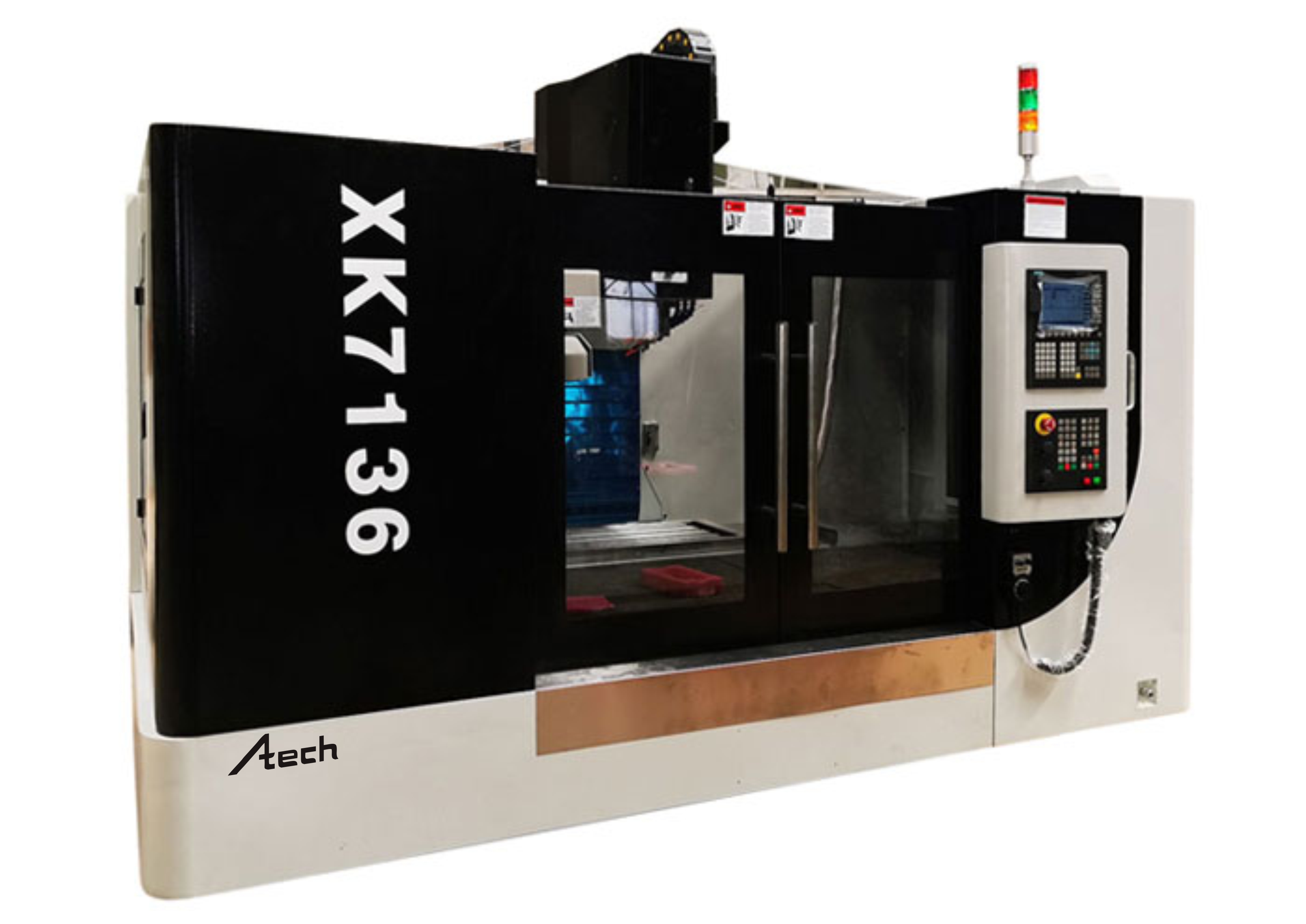

Milling Machine XK7136

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: ,

Description

Main Features

  • High Precision Hard guideway and screw.
  • Taiwan-made  BT40 spindle unit,8000rpm speed available.
  • Taiwan OKADA Funnel Type 12T/16T ATC can be choosen.
  • Reliable Control System:Fanuc,Siemens,Mitsubishi,GSK.
  • Automatic Central Lubrication System.
  • Full Machine Cover can be choosen.





Specification

Specification XK7136
Table size 1250x360mm
X/Y/Z axis travel 900x350x500mm
Spindle motor 5.5kw
Distance between spindle center and surface column 460mm
Spindle taper BT40
Machine controller GSK990, SIMENS 808D
Rapid speed of X/Y/Z axis 10/10/8m/min
X/Y/Z way motor torque X/Y/Z 7.7N/M
Spindle speed 8000rpm
T-slot 3/18/80mm
Table load 500kgs
Distance from spindle to table 100-600mm
Packing size 2200x2100x2450mm





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
