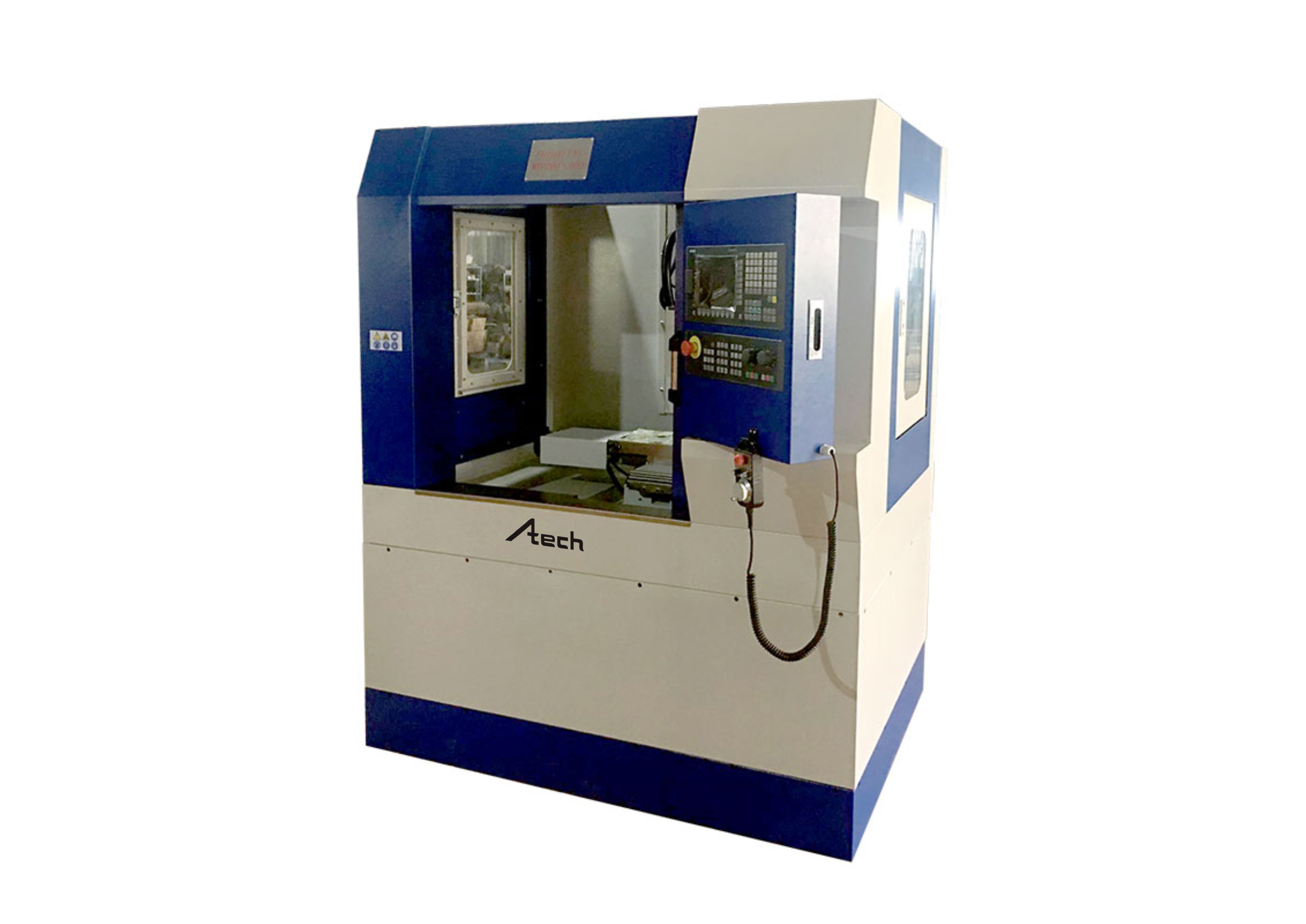

Milling Machine XK7114

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: ,

Description

Main Features

  • R8 spindle taper
  • 1.1kw DC brushless motor
  • Lower noise and high precision
  • Vertical controller panel with easy operation and beauty
  • Suitable for mould machining and production in lots and engraving
  • GSK is standard controller, Siemens & Fanuc as optional



Specification

Specification XK7114
Worktable size 200x600mm
X axis travel 350mm
Y axis travel 240mm
Z axis travel 310mm
T slot 12x45mm 4
Max.loading of worktable 50kg
spindle taper R8
spindle speed 4000mm/min
Distance from spindle center to column 268mm
Distance from spindle nose to worktable surface 38-348mm
Main motor(DC brushless motor) 1kw
Feeding motor(step motor)X/Y/Z 6Nm/6Nm/6Nm
Fast raip speed 4000mm/min
feeding speed 0-3000mm/min
min set unit 0.001mm
Net weight 580kg
Machine size 148/130/185cm





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 580 kg
