Description
Main Features
- The casting is optimized, about 25% more weight and more rigid than the same machine in the market.
- Convenient and easy to operate. Can be manual or CNC.
- Two-speed gear speed regulation of the spindle, low-speed torque.
- Frequency variable motor, infinitely variable speed regulation.
Specification
|
Specification
|
CNC-M45
|
|
Max. drilling capacity
|
45mm
|
|
Max. milling diameter
|
80mm
|
|
Max. tapping capacity
|
20mm
|
|
Distance from spindle nose to table
|
530mm
|
|
X-axis travel
|
630mm
|
|
Y-axis travel
|
265mm
|
|
Z-axis travel
|
460mm
|
|
Table size
|
1000*240mm
|
|
Distance from spindle to column
|
291mm
|
|
Spindle sleeve travel
|
130mm
|
|
Spindle taper
|
MT4/MT3/R8
|
|
Spindle motor
|
2.2KW variable frequency motor
|
|
Spindle motor voltage
|
single phase/220V
|
|
Feed motor（X/Y/Z）
|
X/Y servo 750W+Z brake 1000W
|
|
Spindle speed (two gears + stepless speed regulation)
|
0-2600PRM
|
|

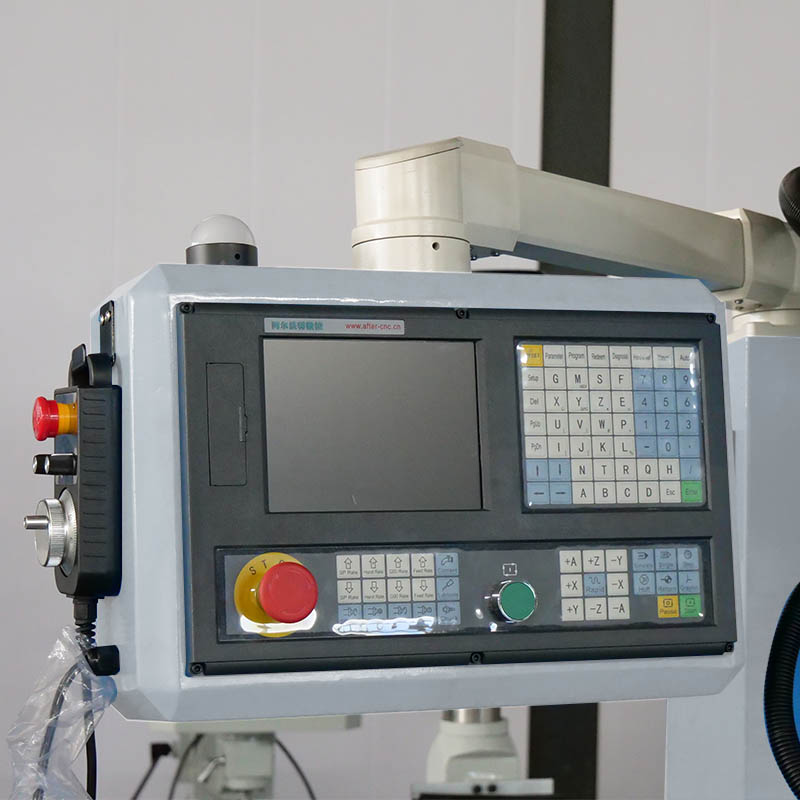

CNC system
|
after990MDCa
|
|
Packing Size
|
1450*1150*1618mm
|
|
N.w/G.w
|
490KG/520KG
|
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
