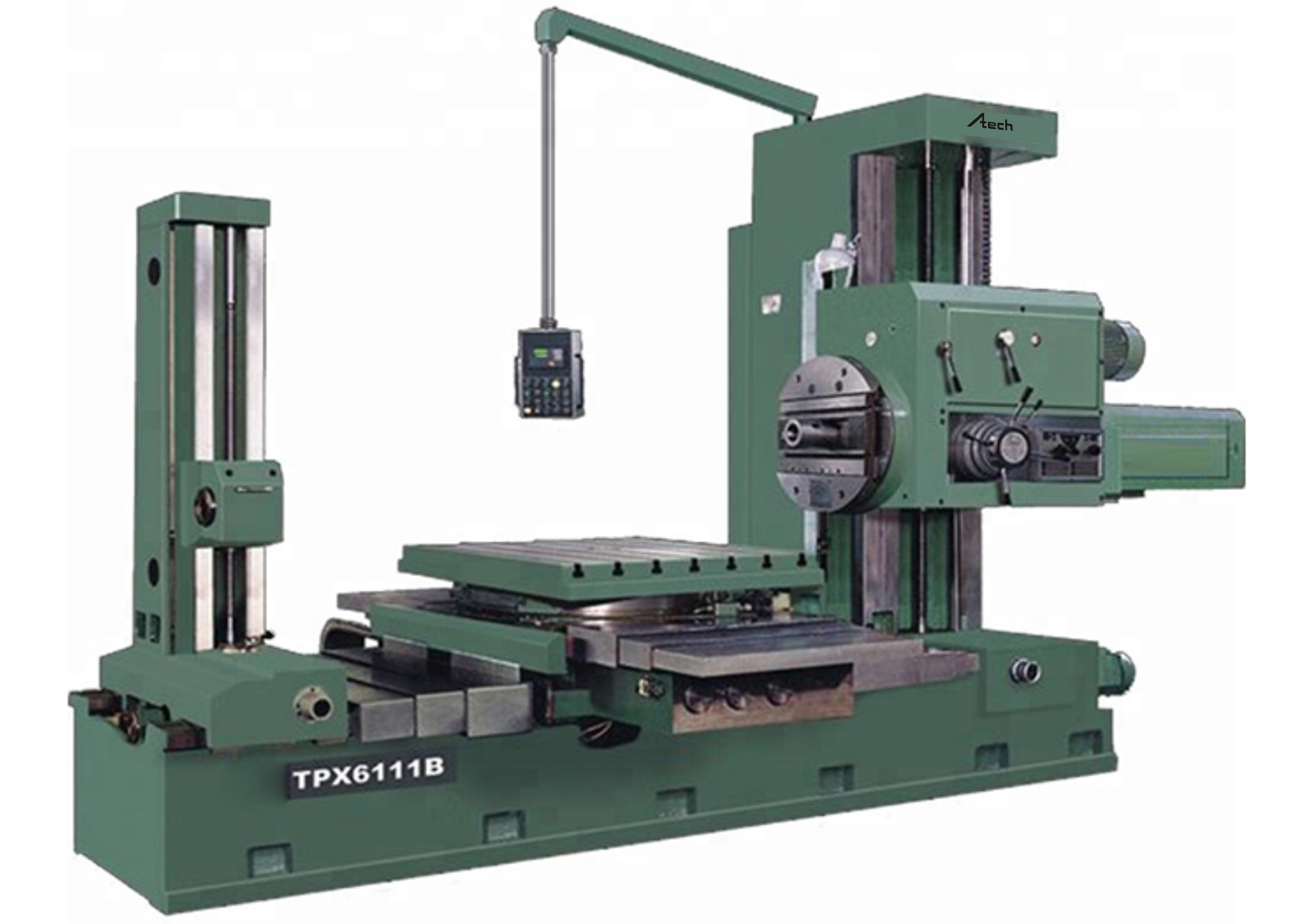

Description
Features
- Machine bed with larger specifications is added with integral auxiliary guideway
- Spindle system consists of three-layer structure, facing head spindle, hollow spindle and boring spindle
- The spindle with disk spring clamping and hydraulic unclamping makes tool handling easy
Specification
| Specification | TPX6113/2 |
| Boring spindle diameter | 130mm |
| The spindle taper hole | ISO7:24No50 |
| Maximum spindle torque | 3136N.m |
| Maximum torque of flat disk | 4900N.m |
| Maximum axial resistance of spindle | 31360N |
| Maximum travel of spindle | 900mm |
| Series of spindle speed | 24级 |
| Spindle speed range | 4-800r/min |
| Slider travel of flat rotary disk | 250mm |
| Working area of table | 1800×1600mm |
| The table can bear the maximum weight | 10000kg |
| Distance from the center line of the spindle to the working table | |
| The maximum | 1800max. |
| The minimum | 0 |
| Bench stroke | |
| The longitudinal | 2000mm |
| The transverse | 2000mm |
| Rapid feed speed of spindle, headstock and worktable in vertical and horizontal direction | 2500mm/min |
| feed range of spindle, spindle box, table per Spindle | 0.05-8/0.01-2 |
| Feed range of spindle, headstock and table slider | |
| Main motor power | 15kw |
| Machine tool dimension(length × width × height) | 7030×4665×3800 |
| Machine weight | 29300kg |
Tersedia juga model lain.
