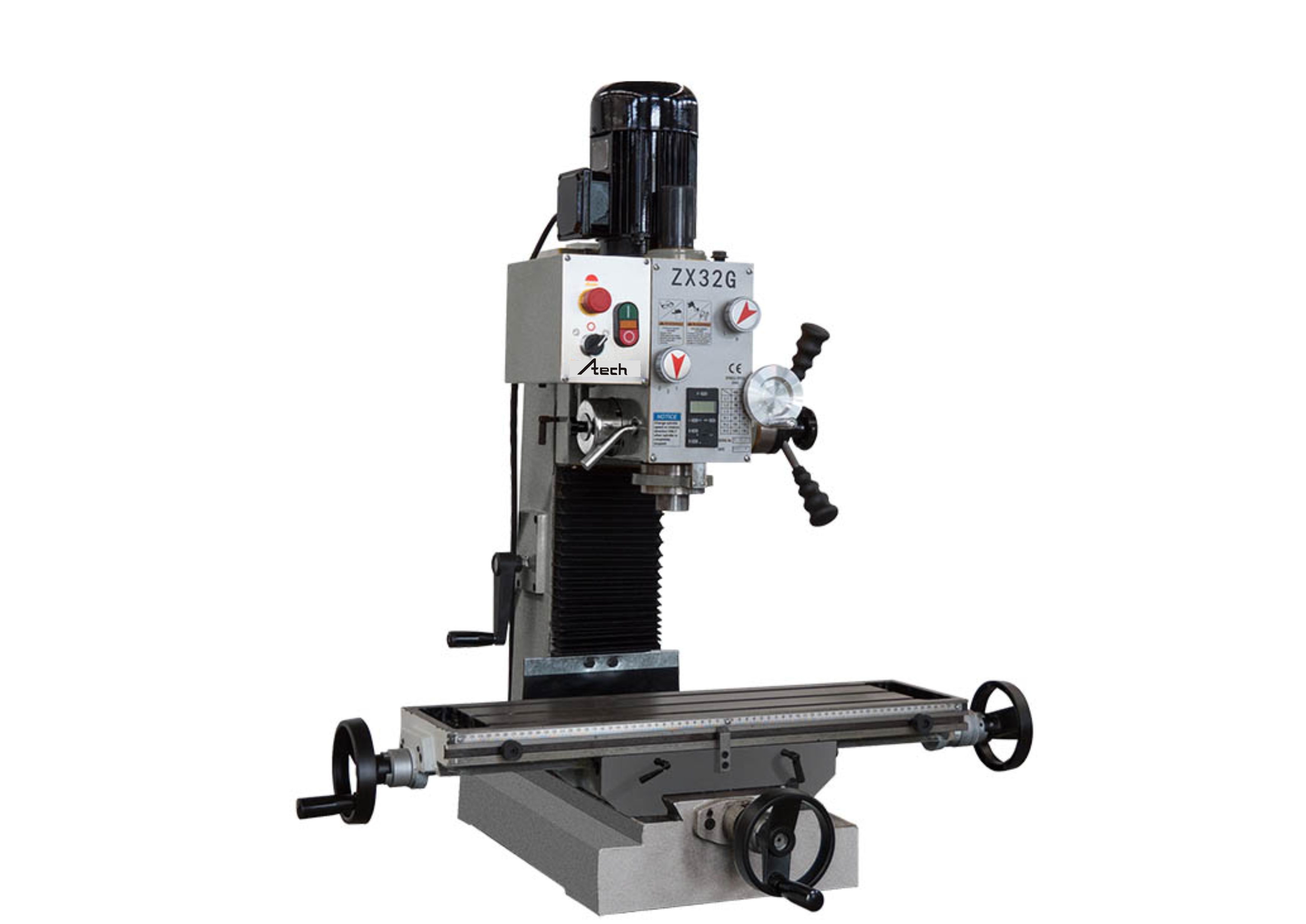

Milling and Drilling Machine ZX32G

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Categories: , Tags: , ,

Description

Main Features

  • High precision grinding all steel spindle.
  • High strength with square column
  • Good strength gear grinding, low nosie.
  • Headstock tilts left and right.
  • Wide electrical box, easy operation.
  • High precision manual feeder.
  • Depth ruler, easy operation and read.

Specification

Specification ZX32G
Max drilling capacity 32mm
Max tapping capacity 16mm
Max face milling capacity 63mm
Table size 400×190mm
Spindle taper MT3/R8
X-axis travel 190mm
Y-axis travel 320mm
Z-axis travel 310mm
Spindle travel 75mm
T-slot size 12mm
Spindle speed range 60-1650rpm
Headstock tilt left and right 90 degree
Column size 150×130×690mm
Base size 550×340mm
Max. distance from spindle center to column 320mm
Max. distance from spindle center to table 400mm
Motor power 750w
N.W/G.W 170/200kgs





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 200 kg
