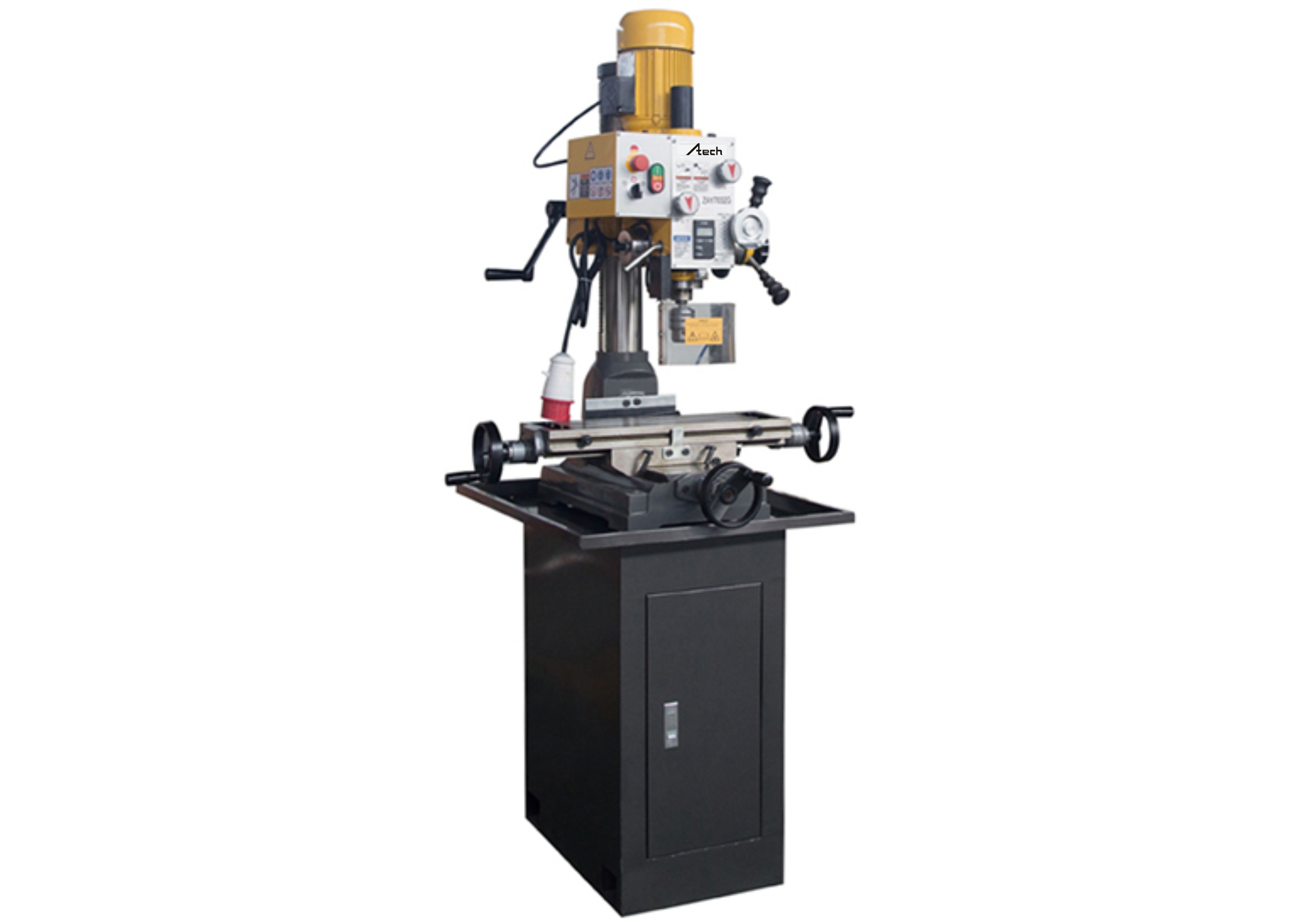

Description
Main Features
- Milling ,drilling, tapping,boring,reaming
- Head swivels ±90°verticaly
- Spindle micro feed precision
- Adjustable gibs on table precision
- Accurate position ,strong rigidity , powerful cutting
- Gear-driven type and round column.
Specification
| Specification | ZAY7032G |
| Max. drilling capacity | Φ32mm |
| Max. tapping capacity | Φ20mm |
| Max. face milling capacity | Φ63mm |
| Max. end milling capacity | Φ20mm |
| Max. distance from spindle nose to table | 440mm(optional 670mm) |
| Min.distance from spindle axis to column | 272.5mm |
| Spindle travel | 130mm |
| Spindle taper | MT3 or R8 |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50Hz | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m |
| Swivel angle of headstock (horizontal) | 360° |
| (vertical) | ±45° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor Power | 1.5kw |
| N.W/G.W | 318/368kgs |
| Packing size | 770×880×1160mm |
| Loading amount/20″ container | 36pcs |
Machine details
Spindle motor
Round column
Working table
