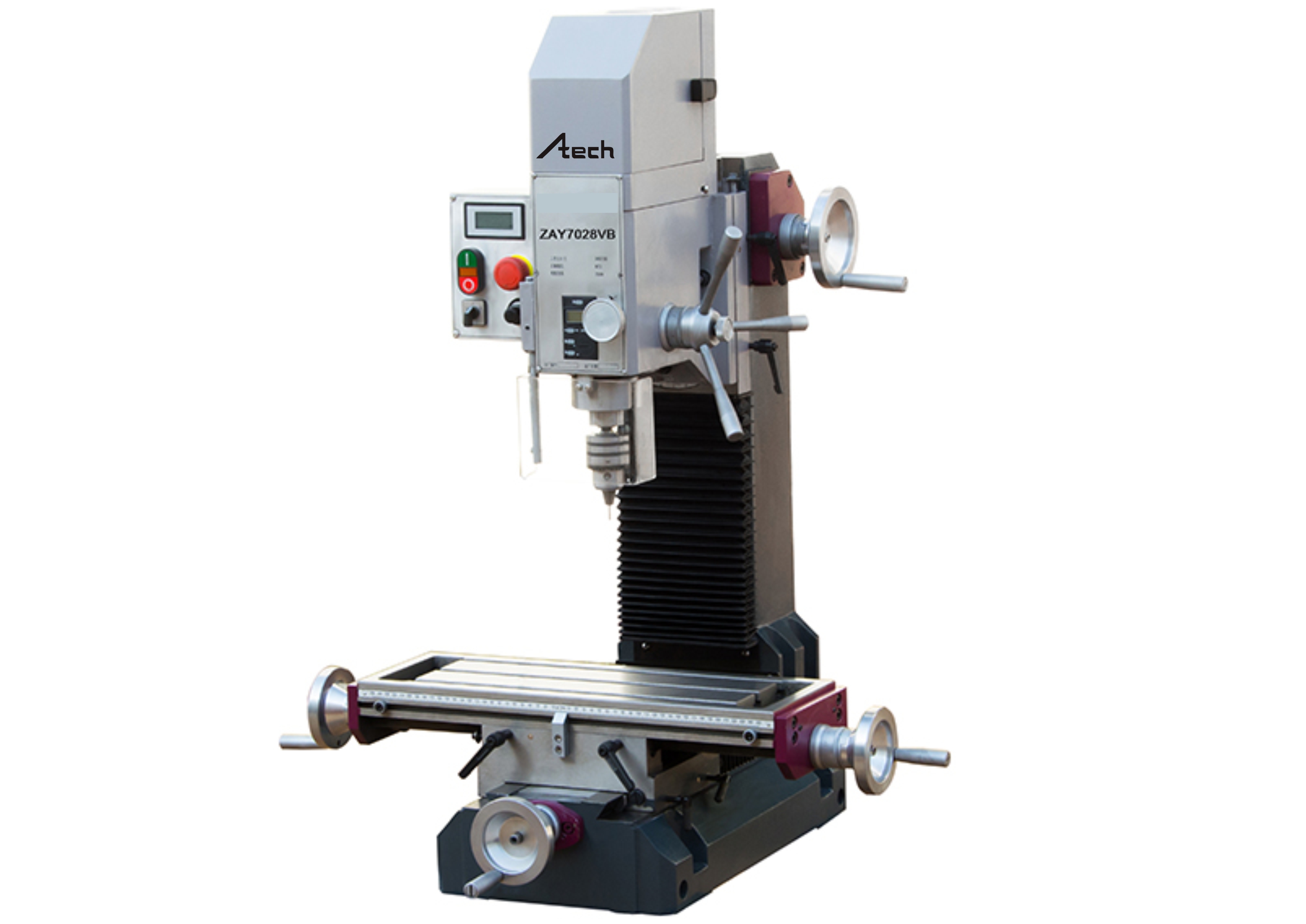

Milling and Drilling Machine ZAY7028VB

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: , ,

Description

Main Features

  • Brushless DC main motor.
  • Compact, accurate variable speed milling & drilling machine.
  • Variable speed.
  • Gear head provides powerful torque.
  • Adjustable gibs and stops on table.
  • Accurate position, strong rigidity, strong cutting power.
  • New design cover ,for easy operation.





Specification

Specification ZAY7028VB(Belt Drive)
Drilling capacity. 28mm
End milling capacity 20mm
Face milling capacity 75mm
Tapping capacity M16
Spindle travel 70mm
Distance from spindle to column 212mm
Distance from spindle to table 50~340mm
Taper of spindle MT3
Spindle speed Varier Stepless,75-1250rpm(L), 150-2500rpm(H)
Table size 540x180mm
T-slots size 12mm
Cross Table Travel 200mm
Longitudinal Table Travel 325mm
Headstock Travel 290mm
Motor 1100W, DC Brushless
Packing Demension 750x710x1000mm
Weight(N/G) 180/210kgs
Loading amount /20″ container 48pcs





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 210 kg
