Mechanical Seal Grundfos Pump GLF-01

Rp1,050,000.00

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Pump Product

Clear
SKU: N/A Category:

Description

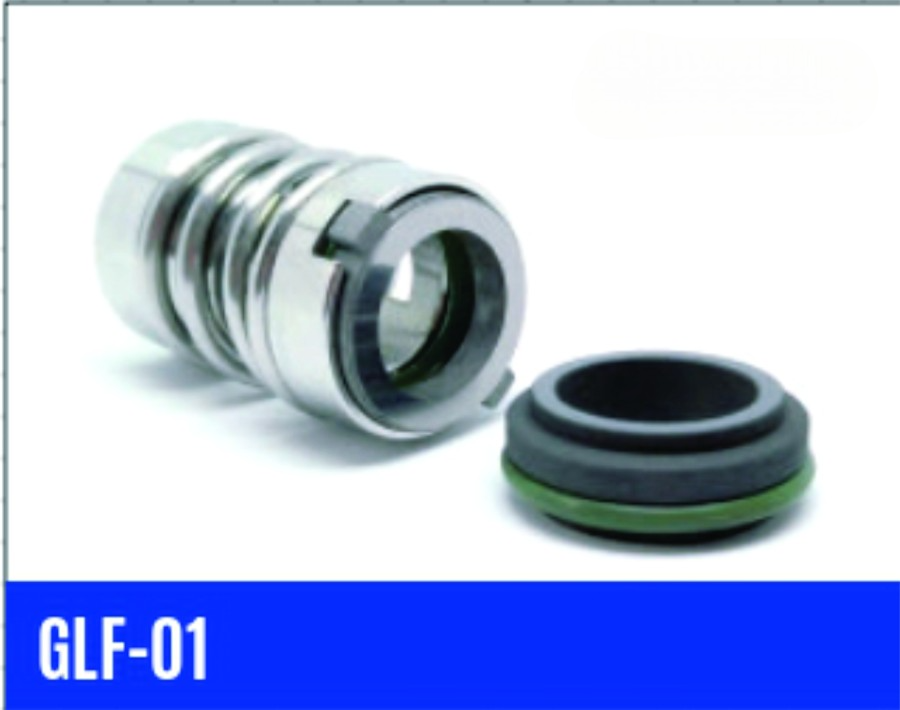

Mechanical Seal Grundfos Type GLF-01

General Information

  • Type: Mechanical Seal (Pump Shaft Seal)
  • Application: Grundfos centrifugal pump series
  • Compatibility: GLF pump systems and equivalent models
  • Available Sizes: 12 mm & 16 mm shaft diameter
  • Design: Compact single mechanical seal

Specifications

  • Shaft Sizes: 12 mm / 16 mm
  • Operating Pressure: Up to approx. 10–16 bar (depending on material configuration)
  • Temperature Range: -20°C to +180°C (depending on elastomer selection)
  • Sliding Speed: Up to 10–12 m/s
  • Design Type: Single spring, unbalanced mechanical seal

Materials

  • Seal Faces: Carbon / Silicon Carbide (SiC) / Ceramic
  • Stationary Ring: Ceramic / Silicon Carbide
  • Rotary Ring: Carbon / Silicon Carbide
  • Elastomers: NBR / EPDM / FKM (Viton)
  • Metal Components / Spring: Stainless Steel (SS304 / SS316)

Design Features

  • Compact and simple construction
  • Easy installation and replacement
  • Reliable sealing performance for clean and light fluids
  • Stable operation under continuous duty
  • Available in multiple shaft sizes (12 mm & 16 mm)
  • Cost-effective replacement solution

Applications

  • Grundfos GLF pump series
  • Water supply systems
  • Domestic and light industrial pumping
  • Cooling and circulation systems
  • HVAC applications
  • Clean water and low-viscosity fluids

Additional information

Weight 0.5 kg
Model

12mm, 16mm
