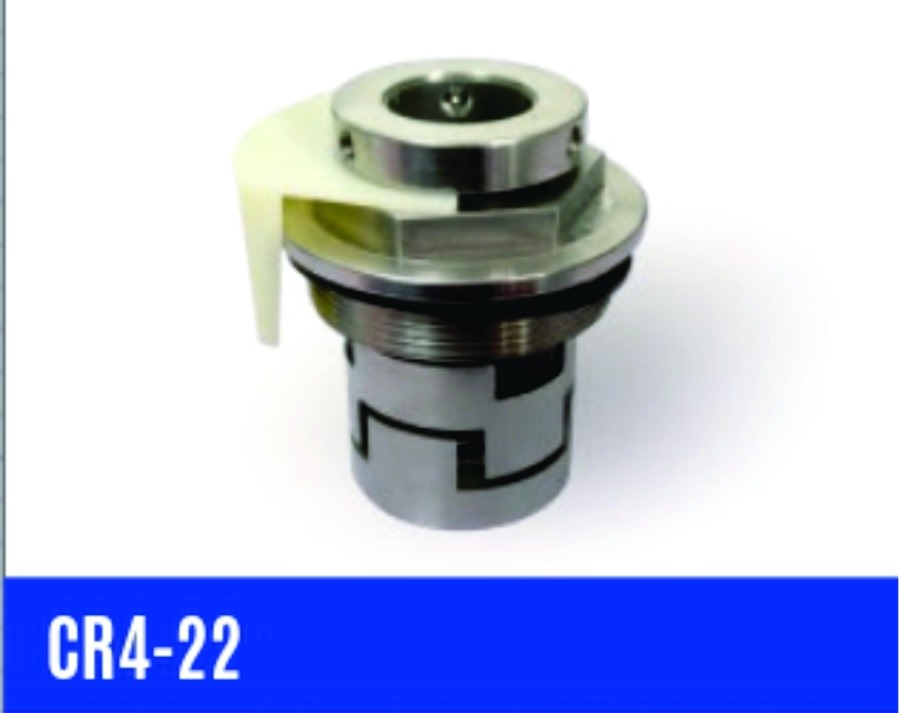

Mechanical Seal Grundfos Pump CR4-22

Rp1,150,000.00

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Pump Product

Category:

Description

Mechanical Seal Grundfos Type CR3-12 / CR3-16

General Information

  • Type: Mechanical Seal (Pump Shaft Seal)
  • Application: Grundfos CR3 series centrifugal pumps
  • Compatibility: CR3 pump series
  • Available Sizes: 12 mm & 16 mm shaft diameter
  • Design: Balanced mechanical seal for industrial pump applications

Specifications

  • Shaft Sizes: 12 mm / 16 mm
  • Operating Pressure: Up to approx. 16 bar (depending on material combination)
  • Temperature Range: -20°C to +200°C (depending on elastomer type)
  • Sliding Speed: Up to 10–15 m/s
  • Design Type: Balanced seal construction for stable performance

Materials

  • Seal Faces: Silicon Carbide (SiC) / Tungsten Carbide (TC) / Carbon
  • Stationary Ring: Silicon Carbide / Ceramic
  • Rotary Ring: Carbon / Silicon Carbide
  • Elastomers: NBR / EPDM / FKM (Viton)
  • Metal Parts / Springs: Stainless Steel (SS304 / SS316)

Design Features

  • Designed for Grundfos CR3 pump series
  • Balanced mechanical seal for reduced wear and heat
  • High resistance to corrosion and abrasion
  • Stable sealing performance under continuous duty
  • Compact design for easy installation and replacement
  • Available in multiple shaft sizes (12 mm & 16 mm)

Applications

  • Grundfos CR3 centrifugal pumps
  • Water supply and distribution systems
  • Industrial circulation systems
  • HVAC and cooling systems
  • Light chemical and process fluid handling
  • General industrial pumping applications



Additional information

Weight 0.5 kg
