Description
Description:

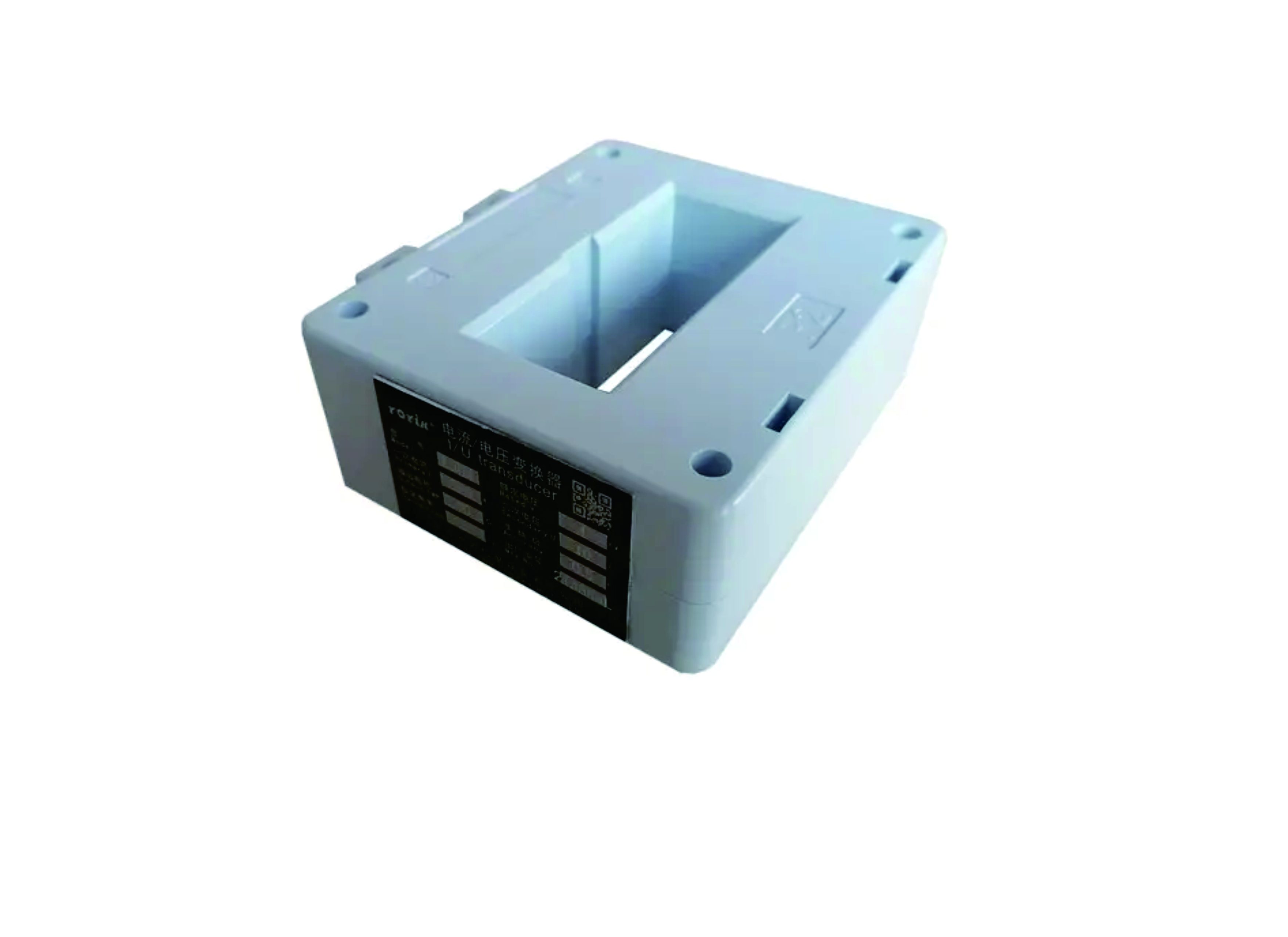

The current transformer adopts high-strength PVC shell and full-cast busbar structure. The transformer is directly stuck on the cable, and the three rubber rings are against the cable and the cable together. The iron core of the transformer is rolled by silicon steel sheet, and the secondary wire is evenly wound on the iron core. The transformer is an open-close structure and can be installed without cutting the cable.
It has a wide range of applications, not only for electromagnetic relay protection, but also for electronic and microcomputer protection devices. Arc coil grounding) select the appropriate current transformer.
Scope of Application:
1. The altitude of the installation site shall not exceed 3000m;
2. Input: 0～60KA
3. Output: 0～500mA 1A or 5A 5VDC or 4～20MA (customer defined)
4. There are no pollution and corrosive and explosive media that seriously affect the insulation performance of the transformer in the atmosphere.
Specification:
|
Output
|
10～500mA
|
|
Voltage
|
380V
|
|
Working temperature
|
-25~40℃
|
|
Weight
|
1KG
|
|
Input
|
0～60KA
|
|
Application Area
|
Power plant
|
