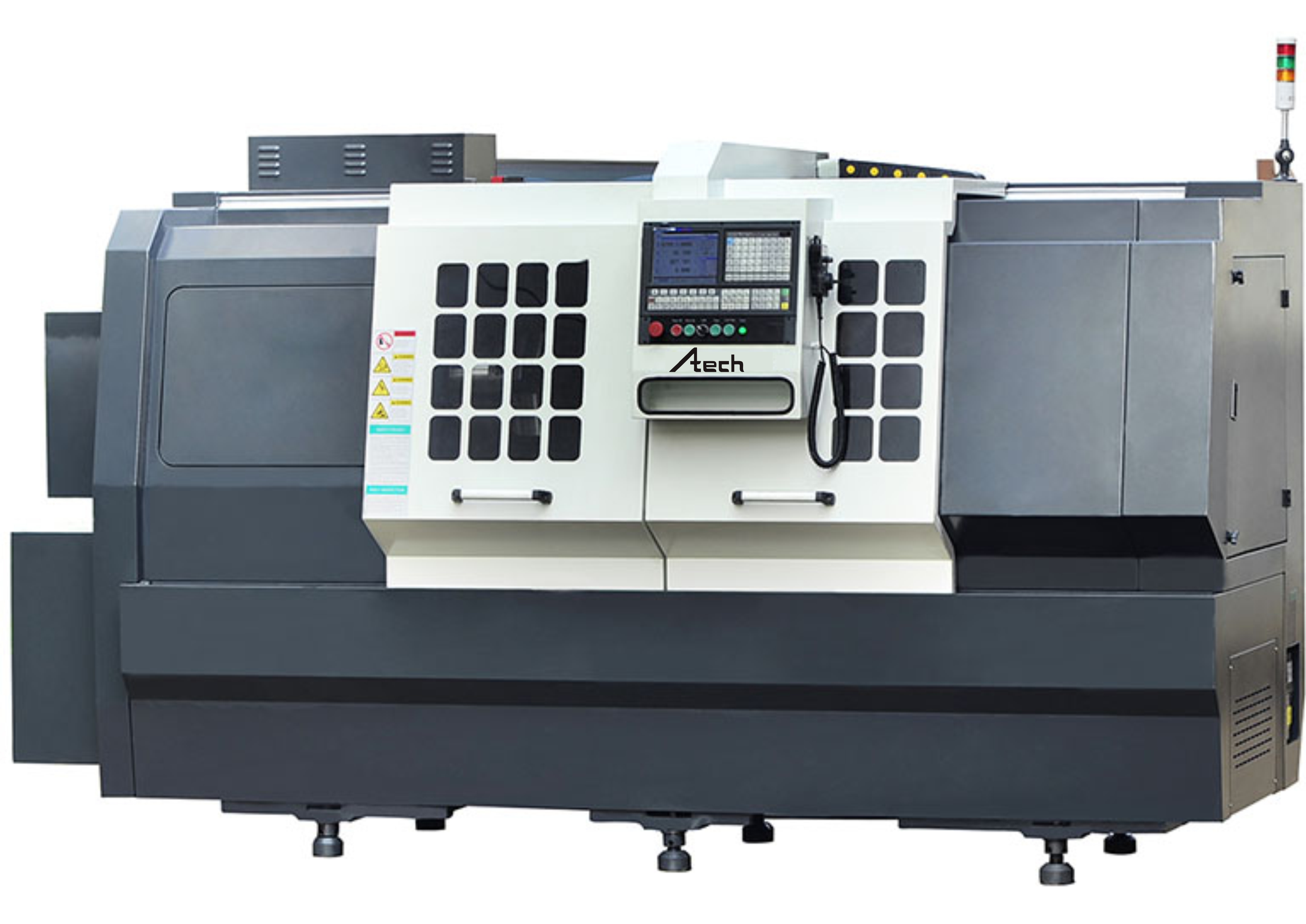

Flat Bed Lathe CKX500

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: , ,

Description

Features

  • Comprehensive priced CNC Turning Center – when you need a high-quality CNC lathe that has BOTH–a high-quality turret and tailstock.
  • Built atop the uniquely designed one-piece solid cast base and lathe bed found in the larger CKX lathe models.
  • The tailstock is set on its own guideway, parallel to the main bed ways.
  • This structure is highly rigid and accurate.
  • Linear guideways are protected by telescoping stainless steel covers–maximizing balls crew protection and extending tool life.
  • Center-mounted ball screws eliminate torque–providing better dynamic properties and greater stability over the life of the machine.
  • Servo drives on X/Z axes of an automatic lathe machine.
  • The spindle can be driven by VFD or Servo.
  • Various control systems, chucks, and tool mounting systems are available.



Specification

Specification Unit CKX500
Capacity Chuck size inch 10″,8″
Max. swing dia. over bed mm Ø500
Max. length of workpiece mm 700/1000/1500/2000(C2C)
550/850/1350/1850(chuck)
*450/750/1250/1750(turret)
Max. swing dia. over slide mm Ø350
Spindle Spindle bore mm Ø81 *Ø62
*Ø86
Max. dia. of through-hole mm Ø70 *Ø52
*Ø75
Spindle nose type A2-8 *A2-6
Spindle speed rpm 1600 *2000
*3000
*2500 *4000
Main motor power kW 7.5/11,*11/15,*15/18.5
Axis X/Z travel mm 280/700,1000,1500,2000
X/Z rapid traverse m/min 15/15,*20/20
Tool post Type 4-station toolpost
*8-station turret
*gang type tooling
No. of tool stations nos 4+2,*8+2,*Driven 12
Tailstock Type of tailstock Manual,*Hydraulic
Taper of tailstock quill MT MT5
Travel of tailstock quill mm 100
Structure Bed Type/guideway Flat/LM
Bed width mm 500
Others Power capacity kVA 15
Overall dimension (LxWxH) mm 3200X1600X2010(shortest)
Weight (about) kg 4000/4300/4800/5300





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 5300 kg
