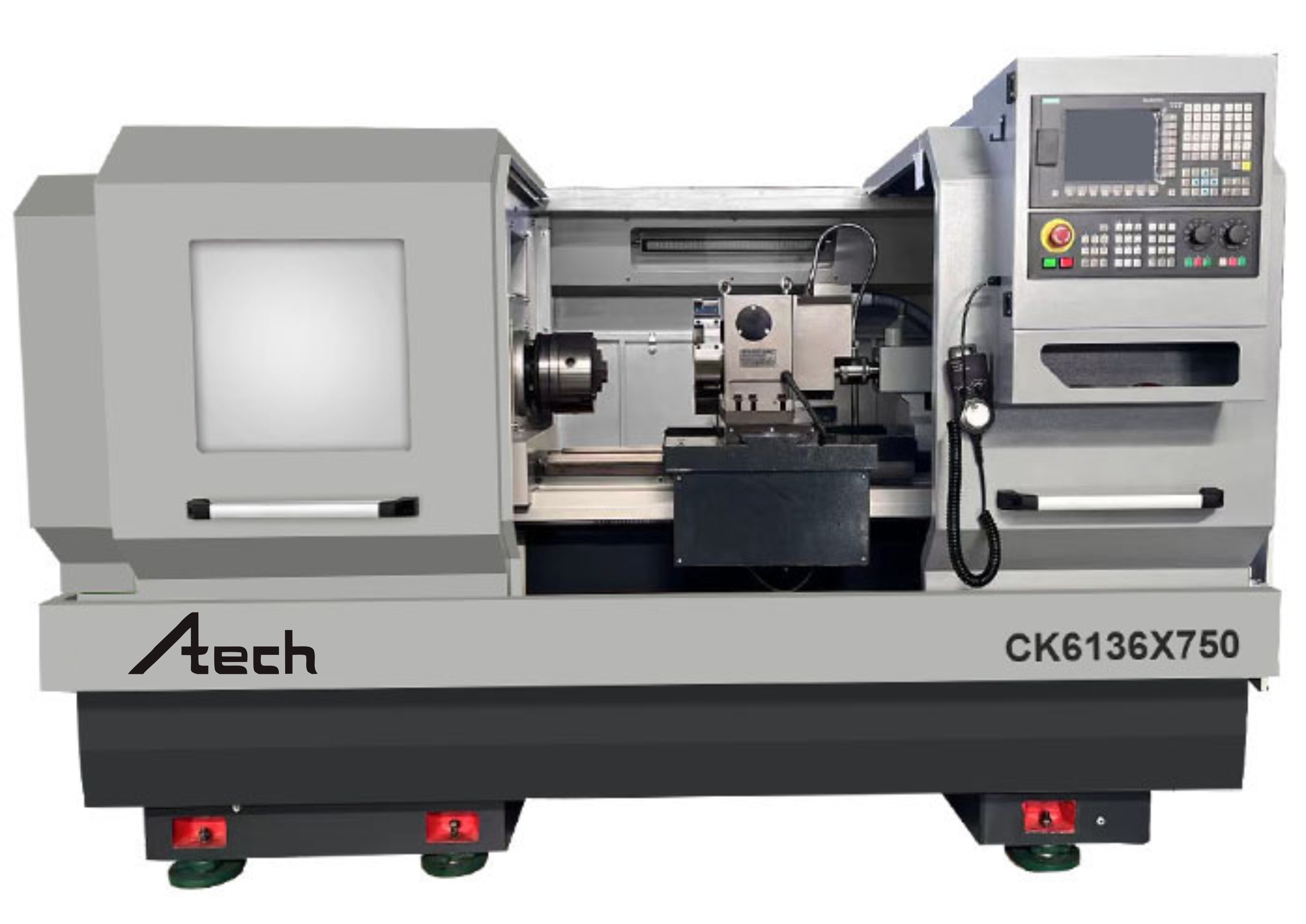

Description
Main Features
- Full enclosure complete, safe and easy operation.
- High rigidity casting bed.
- High precision spindle bearing.
- GSK, FANUC ,Siemens system as optional selection.
- Bed guideways industively hardened.
Specification
| Main Specification | CK6136×750/1000mm |
| Max. swing over bed | Φ360mm |
| Max. swing over carriage | Φ210mm |
| Max length of work piece | 750/1000mm |
| Range of spindle speed | 150-2000rpm |
| Stations of tool post | 4/6/8 position or gang type tool holder |
| Spindle bore | Φ60mm(2-3/4″) |
| Taper of spindle bore | MT6 |
| X-rapid speed | 6m/min |
| Z-rapid speed | 8m/min |
| Width of guide way | 330mm(13″) |
| X-axis travel | 210mm(10″) |
| Z-axis travel | 750/1000mm |
| Max size of tool post | 25×25mm |
| Taper of tail stock | MT4 |
| Max range of tail stock quill | 120mm(4-3/4″) |
| Power of main motor | 5.5kw |
| Packing size(L×W×H) | 2740/3240×1620×2100mm |
| Net weight | 1700kg/2100kg |
Machine details
GSK, Fanuc, Siemens controller as optional selection
4 position toolpost
6 position toolpost for optional
Auto bar feeding device
Tersedia juga model lain.
