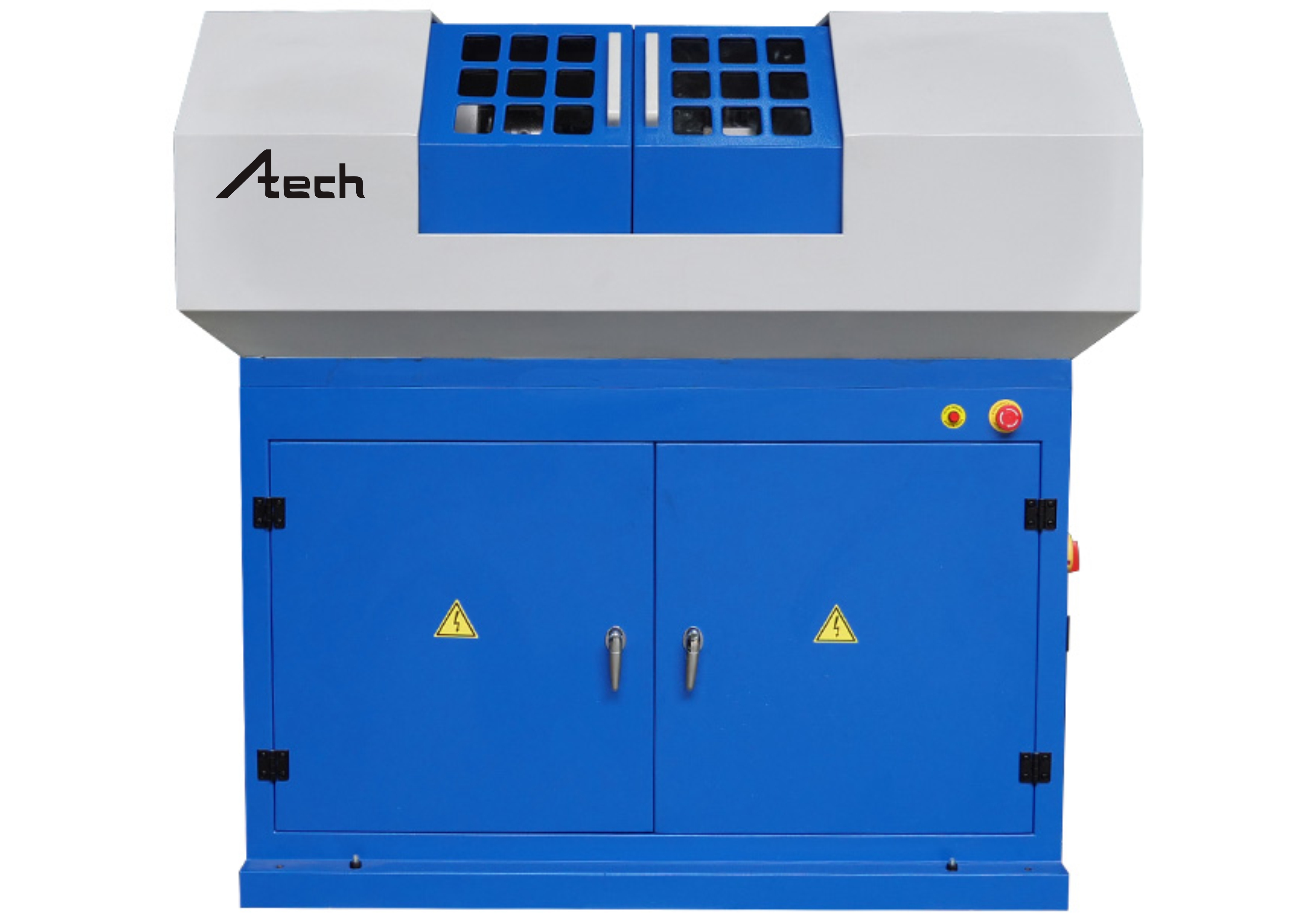

Description
Main Features
- CNC system based on PC platform, high reliability and easy operation
- MT3 metric spindle specifications
- Selected high-quality materials for casting, compact structure
- G code is compatible with FANUC High-strength cast hard rail
- Optional FANUC panel, which is exactly the same as FANUC system operation, which is convenient for operators who operate FANUC system for a long time.
- Taiwan imported ball screw
- Safe and reliable full protective enclosure
- Comply with EU CE safety certification
Specification
| Specification | CK6125S/450 |
| Max. swing over bed | 250mm |
| Max. swing over carriage | 110mm |
| Distance between centers | 450mm |
| Chuck size | 125mm |
| Spindle speed | 100-3000r/min |
| Spindle bore | 20mm |
| Spindle taper | MT3 |
| Spindle power | 1000W |
| X axis travel | 90mm |
| Z axis travel | 320mm |
| Max. rapid speed | 2000mm/min |
| Max. feed speed | 500mm/min |
| Feed motor | 4Nm |
| Position of toolpost | 4 |
| Max. section of tool | 10×10mm |
| Tailstock taper | MT2 |
| Tailstock dia. | 30mm |
| Tailstock travel | 50mm |
| Positioning accuracy | 0.015mm |
| Re-positioning accuracy | 0.01mm |
| Voltage | 230/110V |
| N.W/G.W | 360kg/410kg |
| Machine size (LxWxH) | 1460×760×1450mm |
| Packing size (LxWxH) | 1630×1070×1685mm |
Machine details
3 jaw chuck
4 position toolpost
working light
tailstock
