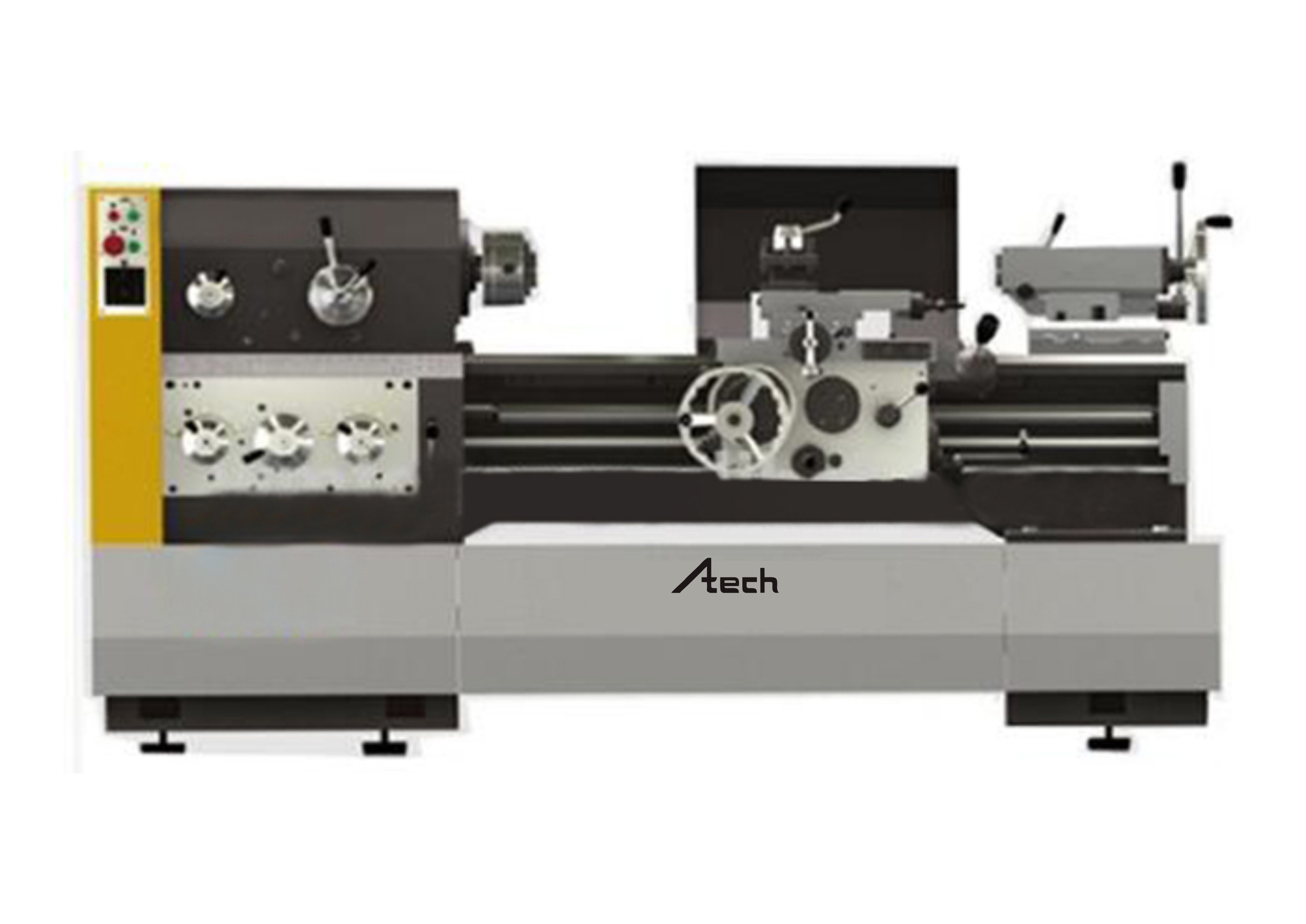

Engine Lathe CS6240

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Description

Main Features

Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.

Specification

Specification	CS6240
Max. swing over bed	Φ400mm
Max. swing in gap	Φ630mm
Max. swing over slide	Φ220mm
Max. workpiece length	750/1000/1500/2000/3000mm
Spindle bore	Φ52mm
Type of spindle	ISO 702/III NO.6 bayonet lock
Spindle speed	24 steps 9-1600rpm
Spindle motor	7.5kw
Diameter of quill	Φ75mm
Max. travel of quill	150mm
Taper of quill	MT5
Tool O.D. size	25×25mm
Max. X travel	145mm
Max. Z travel	320mm
X feed range	93 kinds 0.028-6.43mm/r
Z feed range	93 kinds 0.012-2.73mm/r
Metric threads	48 kinds 0.5-224mm
Inch threads	48 kinds 72-1/4t.p.i
Module threads	42 kinds 0.5-112 πmm
Diametric pitch	42 kinds 56-1/4 t.p.i.π
Cooling pump	60w
Length	2382/2632/3132/3632/4632mm
Width	975mm
Height	1230mm
