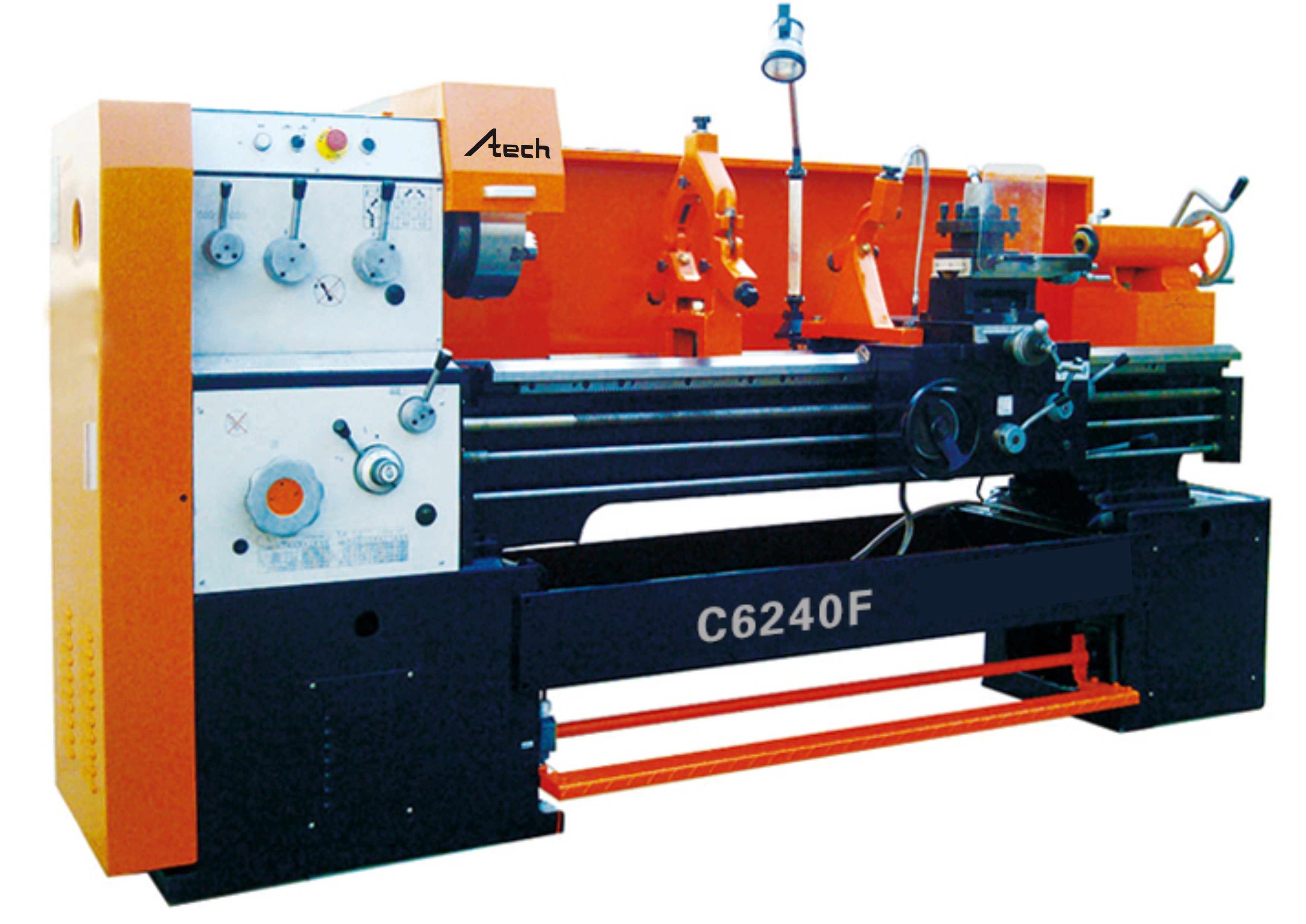

Engine Lathe C6240F

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Description

Main Features

Super voice frequency heated bedways.
Hardened and grounded gears in the headstock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.

Specification

Specification	C6240F
Max.swing over bed	400mm
Max.swing over cross slide	230mm
Max.swing over gap	560mm
Effective length of gap	130/130mm
Center Distance	750/1000/1500/2000/3000
Bed Width	360mm
Spindle hole	52mm
Spindle nose	ISO-C6
Spindle taper	MT6
Spindle speed(Number)	(12steps)16-1600rpm
Metric threads range	17kinds 0.25-7mm
Inch threads range	30kinds 5-144inch
Module threads range	12kinds 0.25-3.5mm
Max.travel of top slide	95mm
Max.travel of cross slide	200mm
Max.size of tool shank	20×20mm
Dia.of tail stock sleeve	65mm
Taper of tail stock sleeve	MT4
Max.travel of tail stock	130mm
Main drive motor	4kw or 5.5kw
Coolant pump motor	125W
Packing size	2250/2450/2880x110x1650mm
