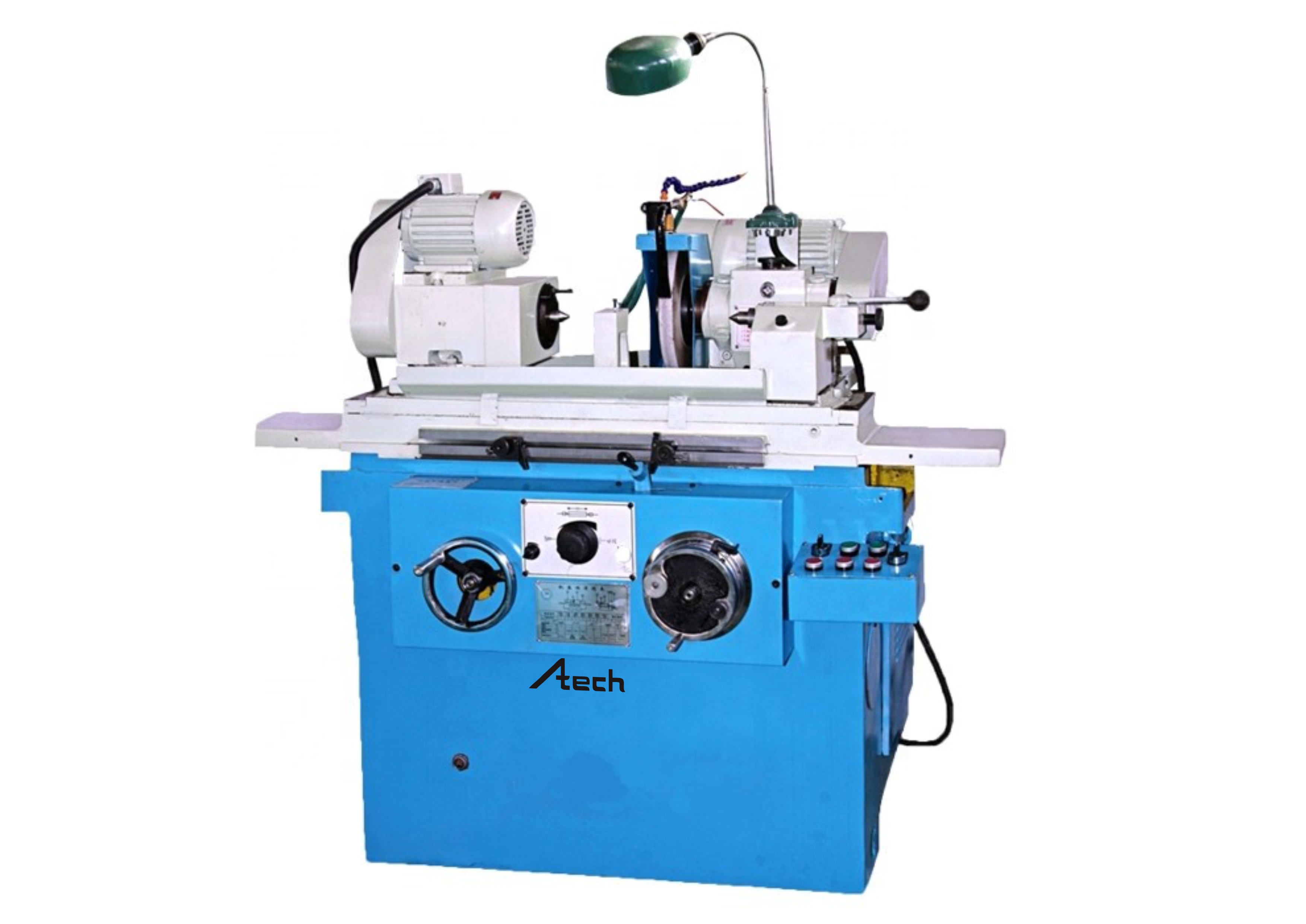

Cylindrical Grinding Machine M1308

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri3

Category: Tags: ,

Description

Main Features

  • The longitudinal movement of the worktable is driven by hydraulic or by hand wheel.
  • The worktable can rotate to a certain degree so as to be suitable for grinding taper.
  • The wheel head cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through hand wheel.



Specification

Specification unit M1308×300
Grinding dia.(O.D/I.D) mm Φ2~Φ80
Grinding length.(O.D/I.D) mm 300
Center height mm 115
Worktable speed m/min 0.1~4
Max.travel of table mm 340
Max.workpiece weight kg 10
Swivel range of worktable . ﹣3~+7°
Wheel peripheral velocity m/sec 35
Externalwheef size mm MaxΦ250×25×Φ75 MinΦ180×Φ75
Internal wheel spindie totating-speed r/min
Workhead and tailstock center morse NO.3
Machine motor power kw 2.34
Overall dimensions(L×W×H) mm 1360×1240×1000
Machine weight kg 1500





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 1500 kg
