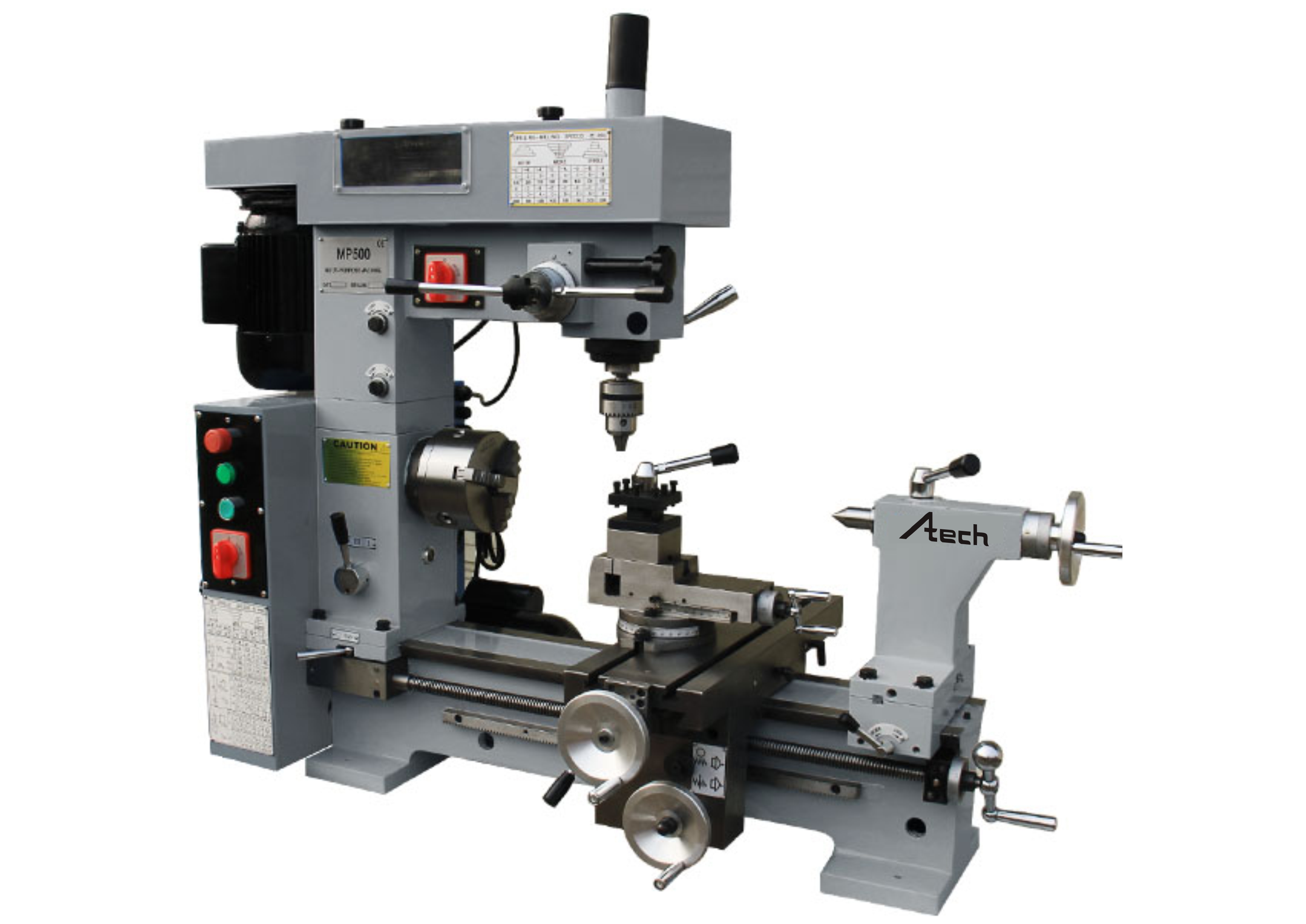

Description
Main Features
- Adjustable height drill/mill head increase capacity.
- Fine feed handle and clutch for precision milling.
- Spindle is supported by high precision bearing.
- Metric or imperial thead cutting.
- Suitable for processing metal,wood, and other materials.
Specification
| Specifiction | MP500 |
| Swing over bed | 420mm |
| Distance between centers | 500mm |
| Max. longitudinal travel | 400mm |
| Max. cross travel | 200mm |
| Spindle taper | MT4 |
| Spindle bore | φ28mm |
| Step of spindle speed | 7 steps |
| Range of spindle speed | 160-1360rpm |
| Barrel travel | 70mm |
| Barrel taper | MT3 |
| Metric thread range | 0.2-6mm |
| Inch thread range | 4-120T.P.I |
| Longitudinal range of automatic feeding | 0.05-0.35mm/ 0.002-0.014″ |
| Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014″ |
| Max. drilling capacity | φ22mm |
| Worktable size (L×W) | 475×160mm |
| Max. end mill | φ28mm |
| Max. face mill | φ80mm |
| Distance between spindle center and column | 285mm |
| Distance between spindle and worktable | 306mm |
| Headstock travel of up and down | 110mm |
| Spindle taper | MT3 |
| Step of spindle speed | 16steps |
| Range of spindle speed | 120-3000rpm |
| Swivel degree of headstock | ±360° |
| Motor power | 0.75kw |
| Packing size | 1130×580×1100mm |
| N.W/G.W | 245/280kgs |
Tersedia juga model lain.
