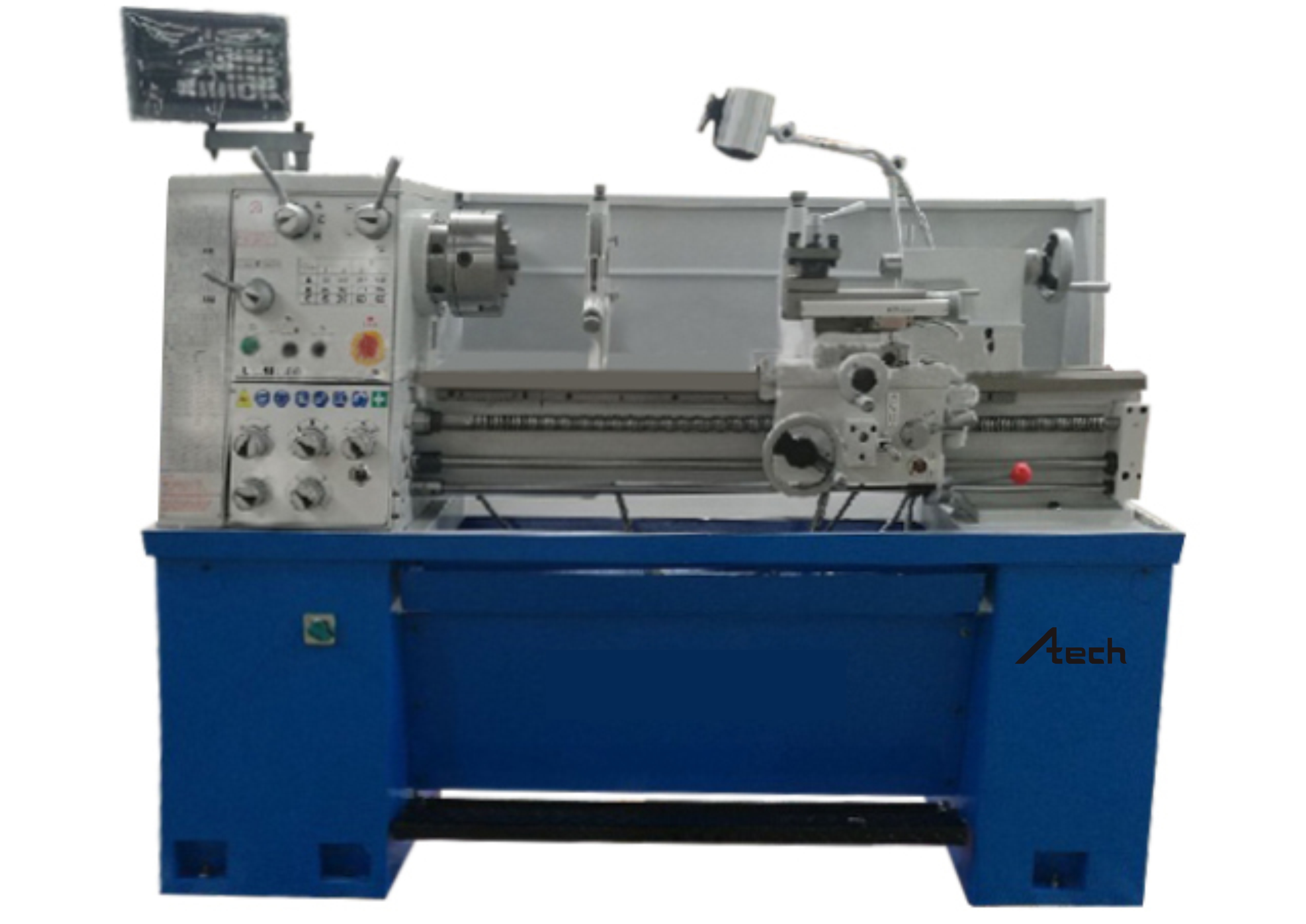

Bench Lathe CQ6240

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Description

Main Features

Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function.

Specification

Specification	CQ6240/1000
Max. swing over bed	400mm
Max. swing over cross slide	250mm
Max. swing over gap	520mm
Distance between centers	1015mm
Width of bed	218mm
Spindle bore	52mm
Spindle taper	MT6
Spindle nose	D5
Range of spindle speed	65-1800rpm
Range of longtudinal feeds	0.0527-1.2912mm/rev
Range of cross feeds	0.011-0.276mm/rev
Range of metric threads	0.4-7mm
Range of inch threads	4-60TPI
Taper of tailstock	MT4
Motor power	2.2KW (3HP)
Packing size	1940x890x1545mm
NW/GW	760/840kg
