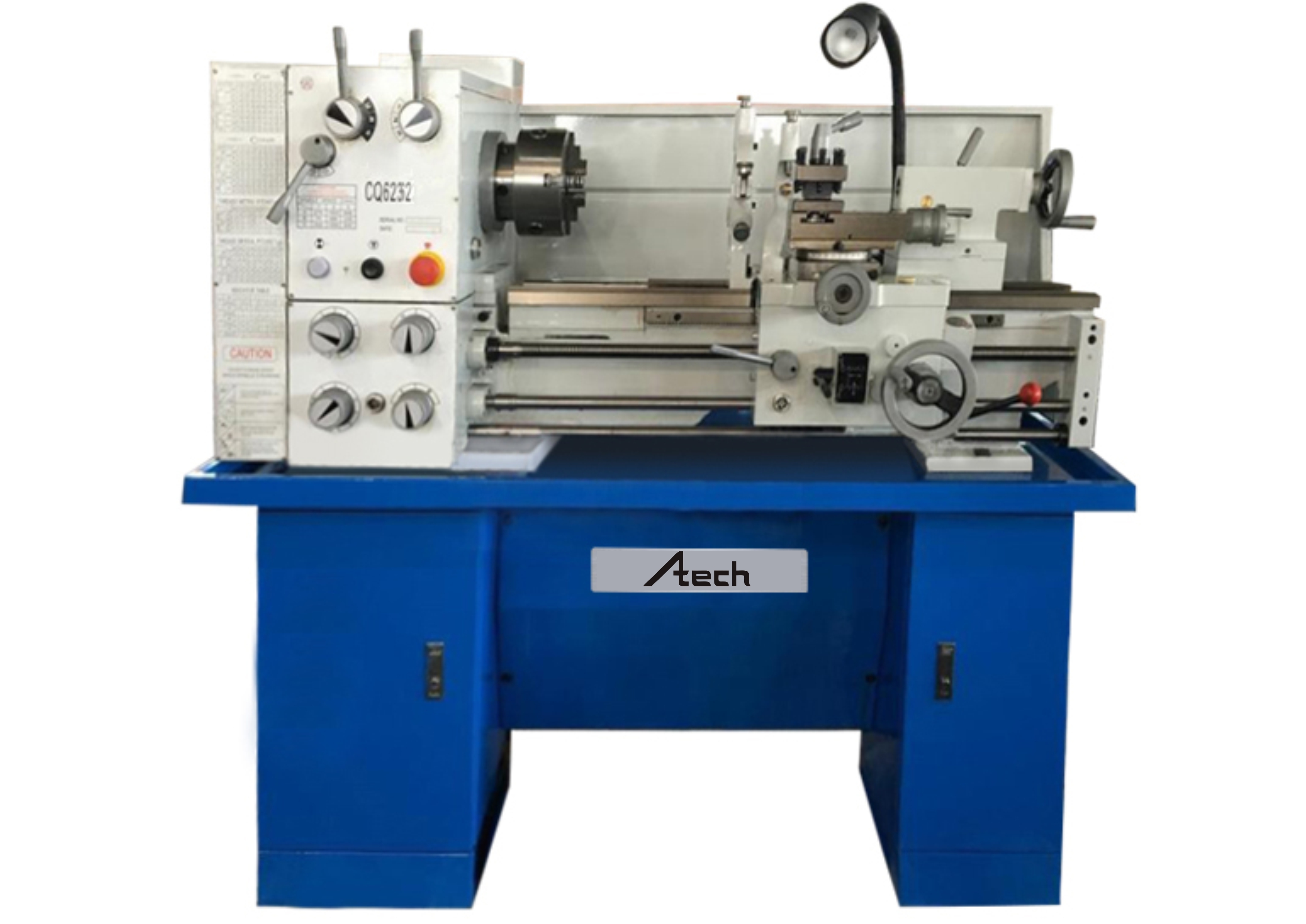

Bench Lathe CQ6232

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Description

Main Features

Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function.

Specification

Specifications	CQ6232
Swing over bed	320mm
Swing over cross slide	198mm
Swing over gap	476mm
Distance between centers	750/910/1000mm
Spindle bore	38mm
Spindle taper	MT5
Spindle speed range	65-1700rpm or 65-1810rpm
Longitudinal feed range	0.079-10.291 mm-rev 0.003″-0.0508″ /rev
Cross feed range	0.017-0.276 mm/rev 0.0007″-0.0108″ /rev
Metric thread range	0.4-7mm
Inch thread range	4-60 TPI
Travel of tailstock	100mm
Taper of tailstock	MT3
Motor power	1.1kw/1.5kw
G.W	550/590/670kgs
N.W	500/540/640kgs
Packing size	1480/1680/1970x750x1400mm
