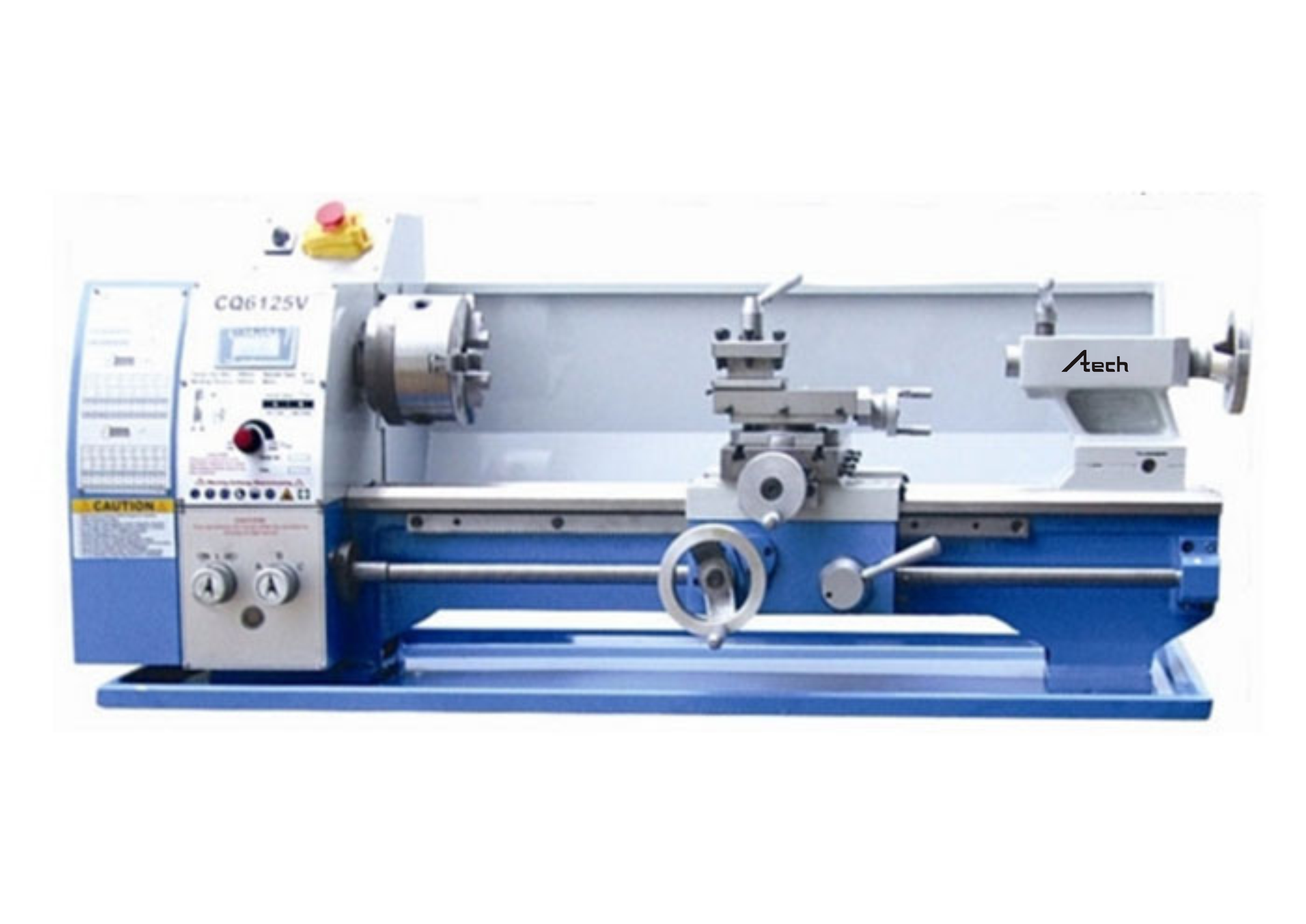

Description
Features
-
Precision ground and hardened bed ways.
-
The spindle is supported with precision roller bearings.
-
Headstock gears are made of high quality steel, ground and hardened.
-
Easy operating speed change levers.
-
Spindle speed range 125-2000rpm.
-
Easy operating gear box has various feeds and thread cutting function.
-
With or without cabinet according to requirement.
Specification
| Specification | CQ6125 |
| Model | 400/550/750(16＂/22＂30＂) |
| Swing over bed | 250mm(10＂) |
| Width of bed | 135mm(5-1/2＂) |
| Spindle bore | 21mm(3/4＂) |
| Taper of spindle bore | MT3 |
| Range of spindle bore | 125-2000rpm |
| Taper of tailstock quill | MT2 |
| Range of metric threads | 0.1-2.5mm |
| Range of imperial threads | 8-56T.P.I |
| Range of longituainal speeds | 0.10-0.20mm/rev |
| Cross slide travel | 115mm(4-1/2＂) |
| Compound rest travel | 70mm(2-3/4＂) |
| Max.travel of tailstock quill | 65mm(2-1/2＂) |
| Motor power | 550w |
| Packing size | 1150×560×570mm |
| N.W | 120kg |
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
