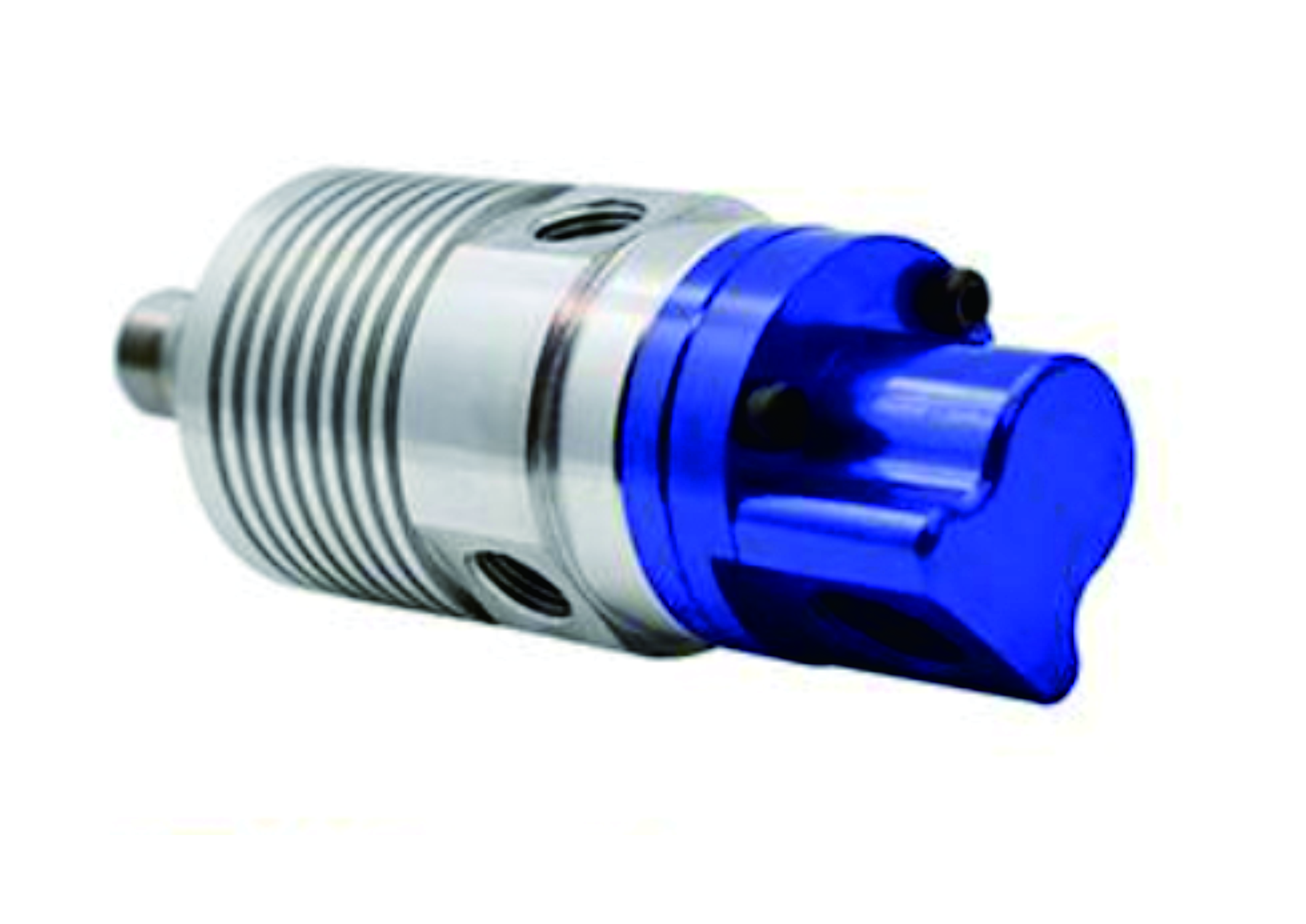

Description

Feature:

Single channel, coolant or MQL. Unrestricted dry running without media pressure due to debonding technology. Full flow design, no debris or burr clogging. Bearing support and threaded rotor for easy installation. Dual ABEC7 (ISO P4 grade) angular contact ball bearings. Labyrinth seals and large leak ports to protect ball bearings. Balanced mechanical seals in silicon carbide for extended service life even in harsh operating conditions. Corrosion-resistant anodized aluminum housing.



Scope Of Work:

• medium: water based coolant
• MQL (oil mist) up to 10 bar (145 psi)
• Filtering accuracy: ISO4406 17/15/12, max. 60 microns
• Maximum speed: 20000min¹  20000rpm
• maximum flow: 82 l/min  21.6 gpm
• maximum flow: 24.3 l/min  6.4 gpm
• maximum temperature: 71°C   160°F



Parameter:
