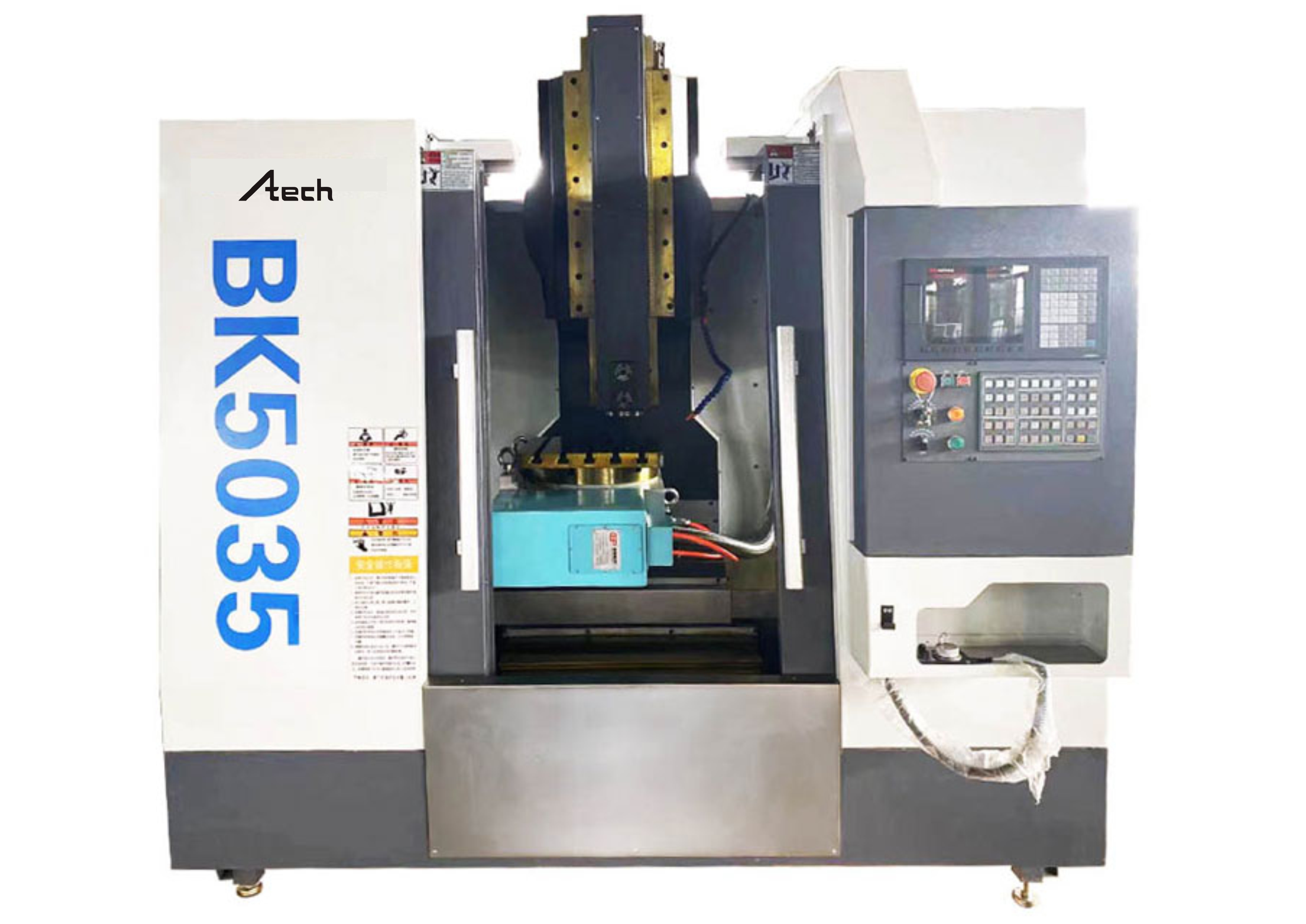

Description
Main Features
- Synchronous belt drive,low noise,high transmission power
- Main motor:servo motor
- Y ball screw :double nut preload
- Perpendicularity of Z/Y≦0.02mm
- Optional configuration over numerical control rotary table(with chuck)
- All-closed protection
Specification
|
Specification
|
unit
|
BK5035
|
|
The maximum length of ram
|
mm
|
350
|
|
Ram adjustment stroke
|
mm
|
200
|
|
Number of ram movements
|
n/min
|
0-70
|
|
working desk size
|
mm
|
750×510
|
|
Table travel (X, Y)
|
mm
|
400×420
|
|
The distance between the axis of the tool bearing hole and the forearm of the column
|
mm
|
625
|
|
The distance between the end face of the cutter head support hole and the table
|
mm
|
700
|
|
X direction motor torque
|
(N.M)
|
10
|
|
Y direction motor torque
|
(N.M)
|
15
|
|
Fast-moving
|
X (m/min)
|
5
|
|
Y(m/min)
|
5
|
|
|
Ball screw (X)
|
FFZD3205-3/P4
|
|
|
Ball screw (Y)
|
FFZD3205-3/P4
|
|
|
main motor power
|
KW
|
5.5
|
|
Machine tool weight (about)
|
KG
|
3400
|
|
Package dimensions
|
mm
|
2600/2300/2500
|
