Description
Features

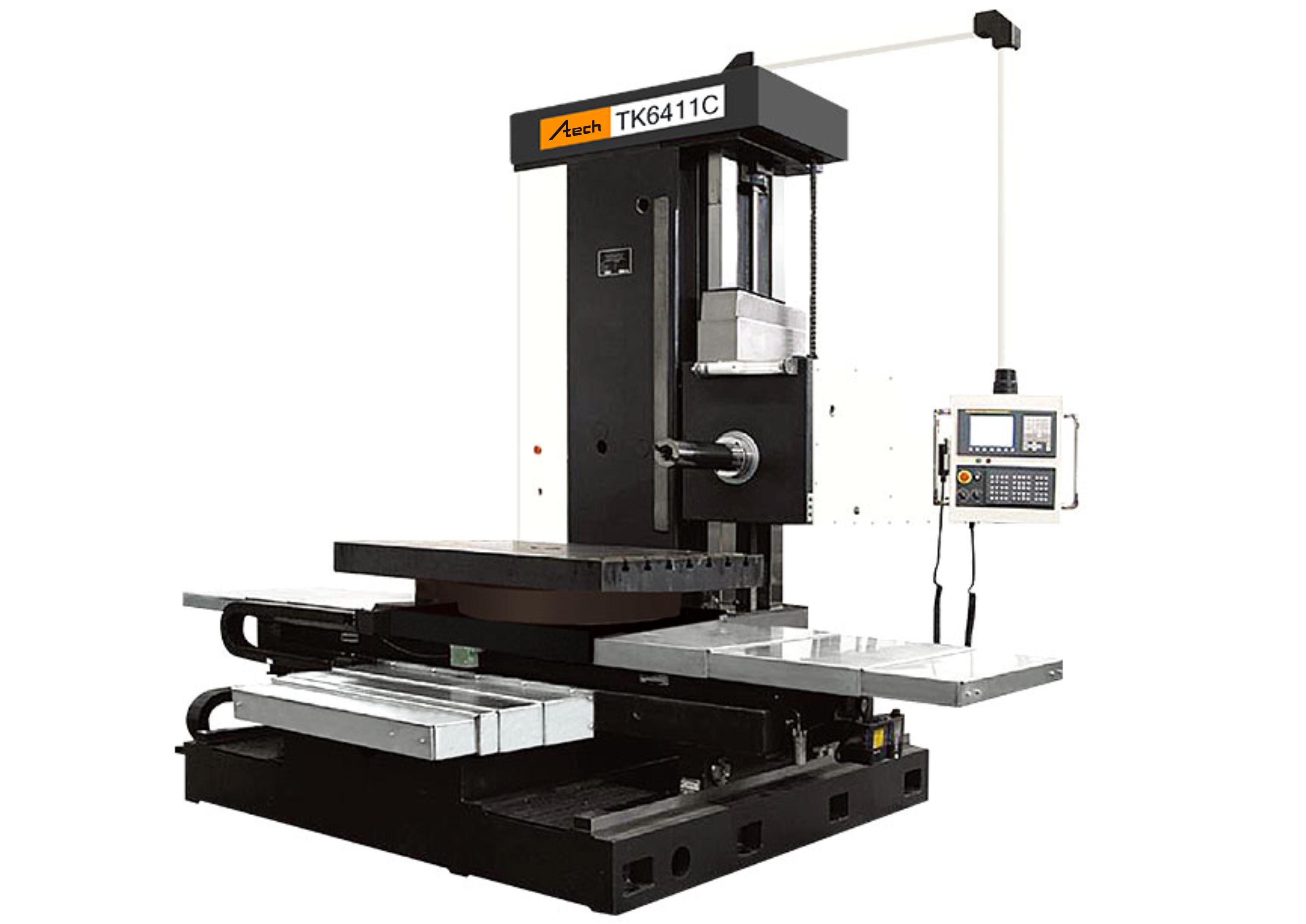

- This machine equipped with a single column, side hung box, four-point positioning worktable, manual rotation.
- X, Y, Z axis controlled by CNC system, could realize simultaneous motion.
- Boring axis’ flexible and axis of facing head are controlled by servo motor, can realize automatic processing
- X, Y, Z axis with rectangular sliding guide .Teflon plastic paste process, shock absorption, and high precision
- The spindle box with counterweight balance, spindle and axis of facing head are controlled by AC servo motor.
Specification
| Specification | TK6411C |
| Workbench size (length×width) | 1350×1000mm |
| Maximum load-bearing capacity of worktable | 5000kg |
| Worktable T-slot size (quantity～width×spacing) | 7～22×125mm |
| Transverse travel of worktable (X axis) | 1600mm |
| Vertical travel of headstock (Y axis) | 1200mm |
| Longitudinal travel of sliding seat (Z axis) | 1200mm |
| Axial stroke of boring shaft (W axis) | 550mm |
| Distance from spindle center line to worktable | 0～1200mm |
| Boring shaft diameter | φ130mm |
| Maximum tool weight | 25Kg |
| Rated torque of boring shaft | 1500Nm |
| Spindle motor power | 15/18.5 KW |
| Inner hole taper of boring shaft | MAS 403(45°) BT50 |
| Speed of Boring Shaft | 12～1500rpm |
| Boundary line of high and low speed of boring shaft | 375rpm |
| Speed control stages of boring shaft | Variable speed |
| Rapid traverse speed: X/Y/Z axis | 10 m/min |
| Rapid traverse speed: W axis | 5m/min |
| Feed rate: X/Y/Z/W axis | 5～2000 mm/min |
| Positioning accuracy X/Y/Z axis | 0.030 mm |
| Positioning accuracy W axis | 0.025 mm |
| Repeat positioning accuracy X/Y/Z axis | 0.020 mm |
| Repeat positioning accuracy W axis | 0.016mm |
| Ball screw size (X/Y/Z) | Ф63×10 mm |
| Ball screw size (W) | Ф50×10 mm |
| Machine weight | About 18000kg |
| CNC controller | FANUC OI MF plus |
| Total electrical capacity | 65KVA |
| Machine size (L×W×H) | 7100×6600×3600 mm |
