Description

Feature:

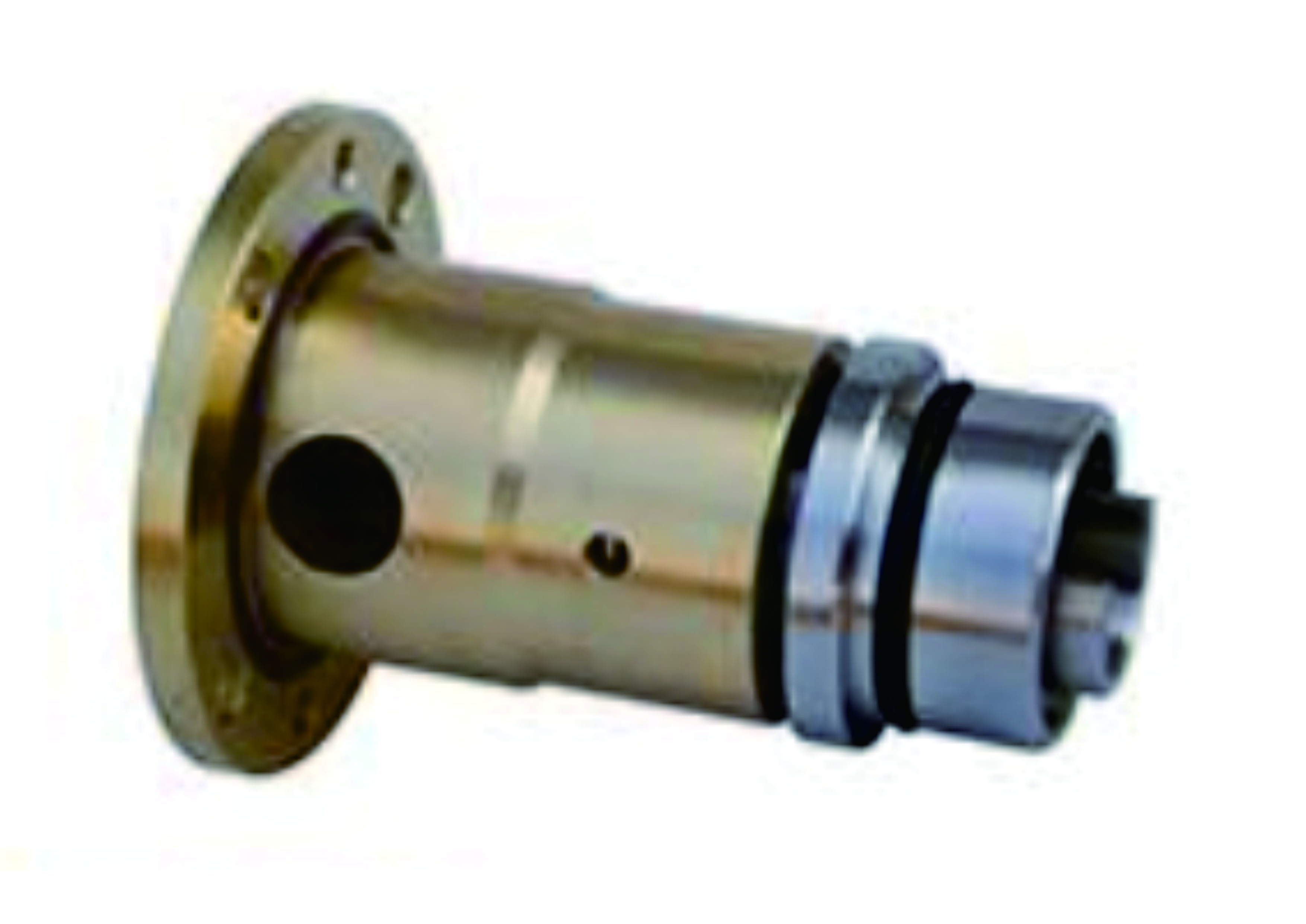

The B-series rotary joint is designed according to the characteristics of the rollers of the modern connection equipment continuous casting machine. Most of the joint body is inserted into the roller, and only the pipe connection flange is exposed outside, which is conducive to the spatial arrangement between the roller flow and the flow. The sealing structure design of the rotary joint adopts a balanced mechanical seal design. The sealing element is made of high temperature resistant and wear-resistant materials. The original axial series type is changed to a unique inverted internal seal type, which not only reduces the axial length, but also makes the shell structure integrated, which is more conducive to the disassembly and maintenance of the joint.



Scope Of Works:

• Axial expansion: 10mm
• Skew angle: 0.1°
• Maximum working pressure: 1.2MPa
• Test pressure: 1.8MPa
• Maximum operating temperature: 230℃
• Maximum speed: 60rpm
• Use medium: water, coolant



Parameter:
